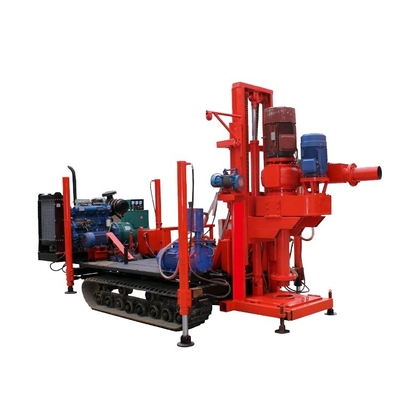

Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility

Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility

Large Image :  Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $19,000.00/sets 1-2 sets
Packaging Details: 1.FCL: iron wire fixed packed in Container<br>2.LCL:Plywood Case<br>3.Wire cables are used for fastening machine<br>4.All surface will be covered by plastic film<br>5.As your requirement<br>Road Line Marking Machine
Supply Ability: 1000 Set/Sets per Month
Contact Now

Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility

Description
Applicable Industries: Construction Works , Energy & Mining Showroom Location: None
Condition: New Type: Rotary Drilling Rig
Power Type: Electric Use: Ore
Voltage: 380V Dimension(L*W*H): 4300*1600*2800mm
Weight: 4500 KG Warranty: 1 Year
Marketing Type: Ordinary Product Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, Gear, Bearing, Engine, Gearbox Key Selling Points: Automatic
Drilling Diameter: 1500mm Drilling Depth: Max.120m
Mobility: Yes Port: QingDao/ShangHai/TianJin/Dalian/Shenzhen

Product Description
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 0
Product Paramenters
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 1
drilling depth
drilling depth
120M
drilling diameter
1500mm
Power head speed
17 r/min
Power head torque
11 kN.m
Maximum lifting force of rig
10t
Effective height of the rig
4620mm
drill rod
Diameter 168mm*6.5mm thickness *2m
Drill rod power
11KW
Sand and gravel pump
throughput
200L/min
rated power
22KW
Vacuum pump
Maximum displacement
4.66m³/min
Input power
7.5kw
Generator set
Rated power
50kw
Rated voltage
380v
Rated frequency
50Hz
Specifications (Length * width * height)
4300*1600*2800
Product advantage
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 2
Engineering track, hydraulic chassis, easy to move, more suitable for plain, plateau and other landforms, chassis 4 legs, drilling
construction vibration is small, good stability
The handle and instrument of all the actuator of the reverse circulation rig are on the operating platform, so the operation and
control are convenient and reliable.
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 3
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 4
The drilling frame of the reverse circulation drilling machine has the advantages of large drilling stroke, large torsional
resistance, simple structure, convenient maintenance, easy handling, convenient operation of the hole, and large top Angle
drilling can be constructed
The bit is cast as a whole, with high impact resistance, high impact capacity, high drilling efficiency, heat treatment of drill
pipe, high hardness and low wear
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 5
Usage scenario

Multi-purpose easy construction

Suitable for railway, water conservancy and other construction projects and outdoor mountain geological sampling survey, geological core drilling, small grouting holes, blasting holes, etc.
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 6
Production Show
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 7
Company Information
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 8
Company profit
Be Focus Electromechanical Equipment Co., Ltd. was founded in 1998 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 9
Company culture

All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
Cooperative unit
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 10
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 11
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 12
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 13
Productive capacity
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 14
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 15
Certifications
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 16
Packaging & Delivery
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 17

FAQ

1. Who are we? We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 21-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine 4. Why should you buy from us not from other suppliers? Henan Be Focus Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean,Hindi,Italian
Max.120m Drilling Depth Full Hydraulic Reverse Circulation Drill Rig for Easy Mobility 18
