Hydraulic Valve Huade Vibratory Ruler for Max. Paving Thickness 50mm Road Construction

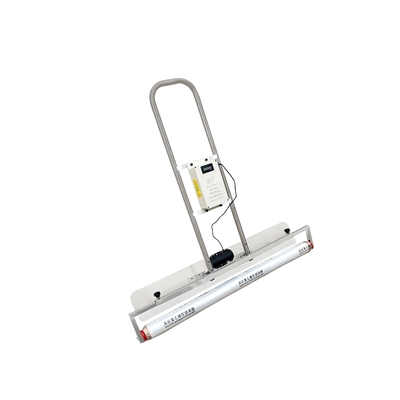

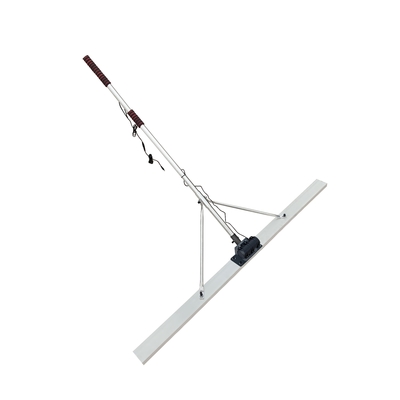

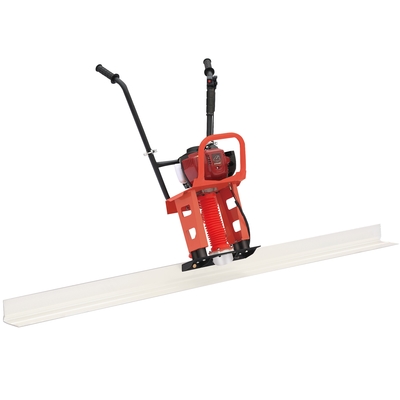

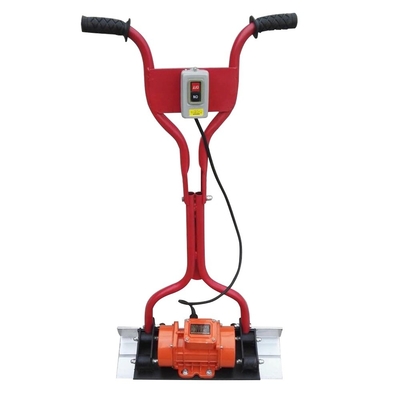

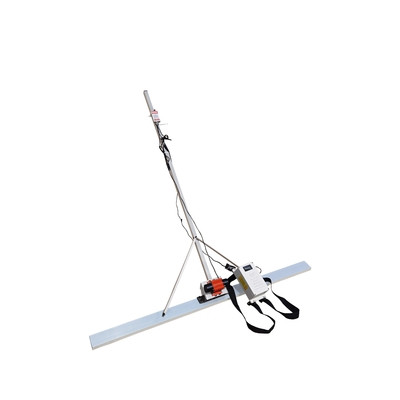

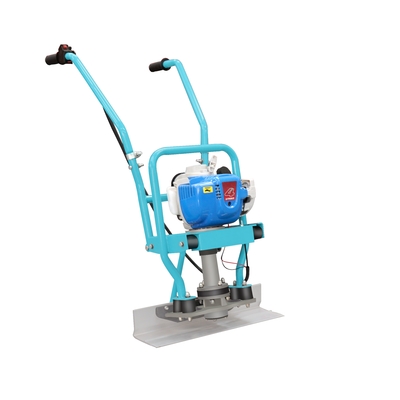

Large Image : Hydraulic Valve Huade Vibratory Ruler for Max. Paving Thickness 50mm Road Construction

Product Details:

Place of Origin:	Henan, China
Brand Name:	Be Focus
Certification:	CE/ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$225.00/sets 1-19 sets
Packaging Details:	1.FCL: iron wire fixed packed in Container<br>2.LCL:Plywood Case<br>3.Wire cables are used for fastening machine<br>4.All surface will be covered by plastic film<br>5.As your requirement<br>Factory Price Earth Drill Machine Handheld Drill Diggers Hand Manu
Supply Ability:	1000 Set/Sets per Month

Contact Now

Hydraulic Valve Huade Vibratory Ruler for Max. Paving Thickness 50mm Road Construction

Description

Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	New Product 2022	Warranty Of Core Components:	1 Year
Core Components:	Engine, Motor	Condition:	New
Production Capacity:	5-10 M / Min	Power:	1.6 Hp ( 1.2 Kw )
Max. Paving Thickness:	50 Mm	Dimension(LWH):	600450450 Mm
Weight:	28 Kg	Warranty:	1 Year
Hydraulic Pump Brand:	Customized	Hydraulic Valve Brand:	Huade
Engine Brand:	ShangChai	UNIQUE SELLING POINT:	Low Noise
Fuel:	0.65L	Product Name:	Concrete Floor Leveling Machine
Ruler Length:	2-10 M Customized	Application:	Concrete Surface Level
Engine:	Gasoline Electric Diesel Engine	Fuel Tank:	3.6L
Control Type:	Hand-held	Max.Speed:	3600rpm
Max.output:	5.5hp	Port:	QingDao/ShangHai/TianJin/Dalian/Shenzhen

Product Description

The vibrating screed rule is mainly used for concrete construction, which can scrape the concrete, discharge the bubbles in the concrete and enhance the density of the concrete. It is suitable for large-area floor construction such as various standard factory buildings, parking lots, warehouses and frame buildings.

Factory Sales High Frequency Concrete Vibrator Screed Road Petrol Concrete Leveling Vibrator Ruler

Specification

Metric
Model	BS-1	BS-2	BS-3	BS-4	BS-5
Dimensions	4202901000mm	420290960mm	420300980 mm	420300980mm	20003001200mm
Type	gasoline	gasoline	gasoline	gasoline	gasoline
Screed size	2-5m customized	2-5m customized	2-5m customized	2-5m customized	8m customized
Max output	1.6hp	0.33HP	1.6hp(1.2kw)	1.2 kw	3 kw
Max speed	10000rpm	10000rpm	10000rpm	10000rpm	8000rpm
Drive System	fully enclosed shaft	Aluminum alloy closed shaft	Aluminum alloy closed shaft	Flexible shaft	Flexible shaft
Weight	28kg	25kg	24 kg	26kg	40kg

Imperial
Model	BS-1	BS-2	BS-3	BS-4	BS-5
Dimensions	16.54''11.42''39.37''	16.54''11.42''39.37''	16.54''11.42''38.59''	16.54''11.42''38.59''	16.54''11.42''47.24''
Type	gasoline	gasoline	gasoline	gasoline	gasoline
Screed size	78.74''-196.85''	78.74''-196.85''	78.74''-196.85''	78.74''-196.85''	314.96''
Max.output	1.6hp	0.33HP	1.6hp	1.6hp	1.6hp
Max.speed	10000rpm	10000rpm	10000rpm	10000rpm	8000rpm
Drive system	fully enclosed shaft	Aluminum alloy closed shaft	Aluminum alloy closed shaft	Flexible shaft	Flexible shaft

Product details

Product Advantages

1. It replaces the two processes of roller and scraping ruler in the traditional construction process, reduces the cost and
improves the efficiency.

2. The aluminum alloy material used in the fuselage is light, easy to use, safe and high in flatness.
3. It uses titanium magnesium aluminum alloy scraper with high flatness.
4. Its handle height can be adjusted, suitable for operators of different heights.
5. Its shock absorber can reduce the vibration of the upper engine and armrest.
6. Its blade is easy to replace, easy to operate and easy to maintain.

Factory Sales High Frequency Concrete Vibrator Screed Road Petrol Concrete Leveling Vibrator Ruler

Packaging & Delivery

We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port,multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.

Company Profile

Company Profile

Henan Be Focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machine power plastering machine roller concrete screed concrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Company culture

All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.

Cooperative unit

Productive capacity

Certifications

FAQ

1. Who are we? We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 21-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine 4. Why should you buy from us not from other suppliers? Henan Be Focus Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. 5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean,Hindi,Italian
