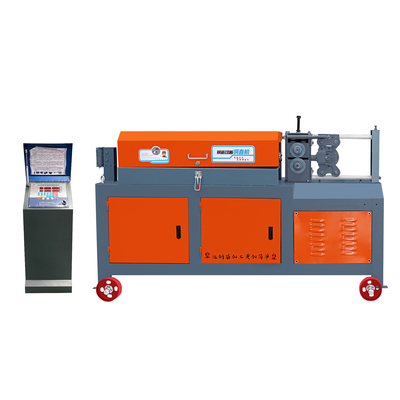

7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min

7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min

Large Image :  7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min

Product Details:
Place of Origin: Henan, China
Brand Name: Tatooine
Certification: CE/ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,660.00/sets 1-4 sets
Contact Now

7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min

Description
Type: Straightener & Cutter Condition: New
Use: Rebar Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year Core Components: PLC, Gearbox, Motor, Pump
Voltage: 220v/380V/440V Power: 7-18kw
Dimension(L*W*H): 250*76*115 Cm Warranty: 1 Year
Key Selling Points: High Productivity Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Construction Works
Showroom Location: None Weight (KG): 800
Name: Rebar Straightening And Cutting Machine Machine Type: Straightener & Cutter
Used For: Rebar/Steel Bar Motor Power: 7.5-16kw
Straightening Speed: 35-60m/min Straightening Diameter: 4-14mm
Weight: 260-900kg Control System: Automatic
Color: Black,yellow,red,customized

Product Description
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 0
The steel bar straightening and cutting machine can reduce the labor intensity of workers, realize the straightening and cutting automation, and improve the efficiency of construction work. It is the most used equipment on the construction site. The structural composition of the steel bar straightening and cutting machine: straightening part, transmission system, fixed length cutting part.
Tatooine Cnc Rebar Straightening And Cutting Machine Steel Bar Cutting Machine Steel Wire Straightener Machine
Specification
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 1
Metric dimensions specifications
Model
YGT4-12
YGT 5-14
YGT6-14
GT2-5
YGT6-10
Motor power
7.5 KW
11+5.5 KW
7.5+4+4 kw
9 kw
4+4 KW
Straightening rate
35-50 m/min
0-70 m/min
45-65 m/min
35-50 m/min
35-50 m/min
Weight
260 kg
900 KG
800kg
300 kg
360 kg
Straightened round bar
6-12 mm
6-14 mm
6-14 mm
2-5 mm
6-10 mm
Straightened rebar
6-10 mm
6-12 mm
6-12 mm
2-5 mm
6-8 mm
Host length
130 cm
250 cm
282 cm
155 cm
178 cm
Host width
65 cm
76 cm
72 cm
96 cm
84 cm
Host height
95 cm
115 cm
108 cm
65 cm
66 cm
Imperial dimensions specifications
Model
YGT 4-12
YGT 5-14
GT 6-14
GT 2-5
YGT 6-10
Motor power
10.5 hp
22.5 hp
21 hp
12 hp
11 hp
Straightening rate
35-50 m/min
0-70 m/min
45-65 m/min
35-50 m/min
35-50 m/min
Weight
573 ib
1984 ib
1764 ib
661 ib
794 ib
Straightened round bar
0.24''-0.47''
0.24''-0.55''
0.24''-0.55''
0.07''-0.20''
0.24''-0.40''
Straightened rebar
0.24''-0.40''
0.24''-0.47''
0.24''-0.47''
0.07''-0.20''
0.24''-0.31''
Host length
51.18''
98.43''
111.02''
61.02''
70.08''
Host width
25.59''
29.92''
28.35''
37.80''
33.07''
Host height
37.40''
45.28''
42.52''
25.59''
25.98''
Product Details
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 2
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 3
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 4
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 5
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 6



Tatooine Cc Rebar Sraightening And Cutting Machine Steel Bar Cutting Machine Steel Wire Straightener Machine
Certifications
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 7
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 8
7-18kw Rebar Straightening and Cutting Machine with Straightening Speed of 35-60m/min 9
