Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Not Available | Marketing Type: | Hot Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Gearbox, Motor |
| Voltage: | 220V-380V | Dimension(L*W*H): | 1100*500*900mm |
| Year: | 2023 | Power (kW): | 3 |
| Weight (KG): | 240 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Home Use, Construction Works |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |

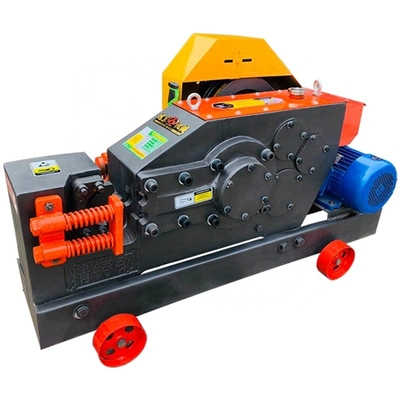

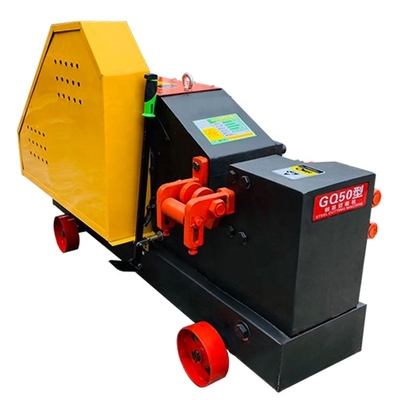

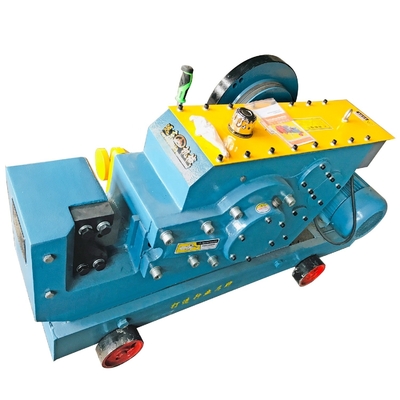

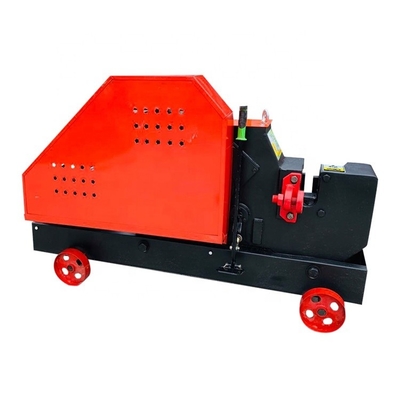

| Showroom Location: | None | Product Name: | Rebar Cutting Machine |
| Model: | GQ40/GQ45/GQ50/GQ55 | Motor: | Electric Motor |
| Motor Power: | 3kw | Cutting Speed: | 28 Times/min |
| Working Capacity: | 6-36mm Rebar | Operation Type: | Manual |
| Dimension: | 1100*500*900mm | Port: | QingDao/ShangHai/TianJin/Dalian/Shenzhen |
Metric dimensions specifications | ||||||
Model | GQ45 | GQ50 | GQ55 | |||
Cutting range (mm) | Round bar:6-36 | Round bar:6-42 | Round bar:6-45 | |||
class bar:6-32 | class bar:6-38 | class bar:6-42 | ||||
Cutting frequency | 32 times/min | |||||
Motor power | 3 KW | 4 KW | 4 KW | |||
Input voltage | 380 v/220 v/230 v/415 v/440 v single phase or three phase | |||||
Motor speed | 2880 rpm | |||||
Blade size(mm) | 83*83*26 | 83*83*26 | 90*90*26 | |||
Weight(kg) | 320 | 480 | 550 | |||
Host length(mm) | 1300 | 1450 | 1550 | |||
Host width(mm) | 520 | 450 | 500 | |||
Host height(mm) | 800 | 850 | 870 | |||
Imperial dimensions specifications | ||||||
Model | GQ45 | GQ50 | GQ55 | |||
Cutting range | Round bar:0.24''-1.42'' | Round bar:0.24''-1.65'' | Round bar:0.24''-1.77'' | |||
class bar:0.24''-1.26'' | class bar:0.24''-1.50'' | class bar:0.24''-1.65'' | ||||
Cutting frequency | 32 times/min | |||||
Motor power | 4 hp | 5.5 hp | 5.5 hp | |||
Input voltage | 380 v/220 v/230 v/415 v/440 v single phase or three phase | |||||
Motor speed | 2880 rpm | |||||
Blade size | 3.27''*3.27''*1.02'' | 3.27''*3.27''*1.02'' | 3.54''*3.54''*1.02'' | |||
Weight | 706 ib | 1058 ib | 1213 ib | |||
Host length | 51.2'' | 57.1'' | 61.1'' | |||
Host width | 20.5'' | 17.7'' | 19.7'' | |||
Host height | 31.5'' | 33.5'' | 34.3'' | |||
