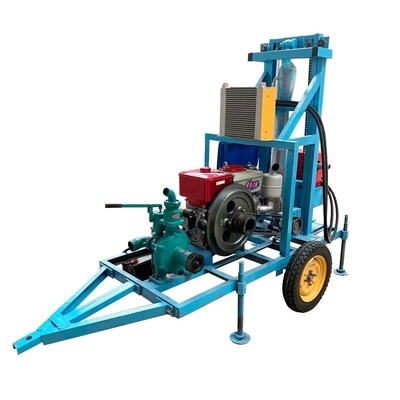

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height

Large Image :  150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height

Product Details:
Place of Origin: HENAN,CHINA
Brand Name: Be-Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,858.00/sets 1-1 sets
Contact Now

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height

Description
Applicable Industries: Building Material Shops, Construction Works , Energy & Mining, Food & Beverage Shops Showroom Location: None
Condition: New Type: Pneumatic Bolt Drill
Power Type: Diesel Use: Water Well Borehole Drilling Rig, Water Well
Dimension(L*W*H): 1940*1150*1900 Mm Weight: 550 KG
Warranty: 1 YEARS Marketing Type: Hot Product 2023
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, Engine, Gearbox
Key Selling Points: Competitive Price Drilling Diameter: 50mm
Drilling Depth: Max.180 M Product Name: Water Drilling Machine
Max Drilling Depth: Max.180 M Application: Water Wells Rock Drill Rig
Engine: Electric Engine Diesel Gasoline Certificatio: CE,ISO
Lift Height: 1.8m

Product Description
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 0
Well drilling rig machines are mainly used for the development of groundwater resources, including domestic water, agricultural water and industrial water drilling, and are also suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling. Drilling rig structure: traction type, vehicle type, vehicle back type.
300m Truck Mounted Water Well Drilling Rig Drilling Rig For Water Well Dth Drilling Machine With Air Compressor
Product Paramenters
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 1
Metric
TYPE
DR-100
Drill pipe diameter
50 mm
Size
1940*1150*190 mm
Drill pipe length
1.5 m
Weight
550 kg
Drill pipe replacement method
thread
Voltage
220v/380v gasoline,diesel engine
Motor power
16 kw
Drilling and crushing method
Impact Rotary
Drilling depth
200 m
Pump power
2.2 kw
Drilling diameter
Within 400mm
Lift height
1.8 m
Lifting force
1000 kg
Imperial
TYPE
DR-100
Drill pipe diameter
2''
Size
76.38''*45.28''*74.80''
Drill pipe length
59.06''
Weight
1212.54 ib
Drill pipe replacement method
thread
Voltage
220v/380v gasoline,diesel engine
Motor power
21hp
Drilling and crushing method
Impact Rotary
Drilling depth
7874''
Pump power
2.99 hp
Drilling diameter
within 15.75''
Lift height
70.87''
Lifting force
2204.62 ib
Product details

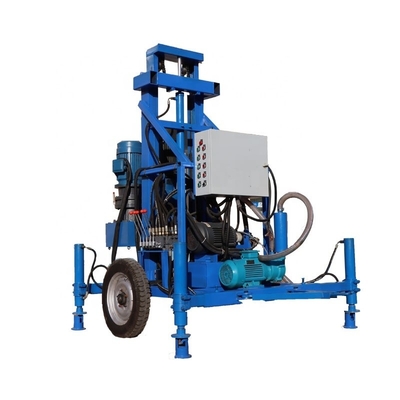

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 2

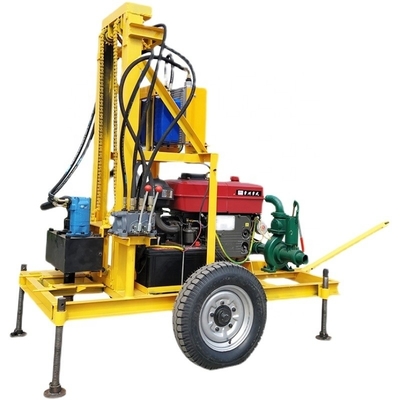

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 3

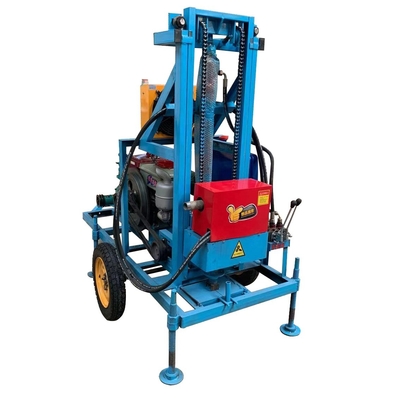

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 4

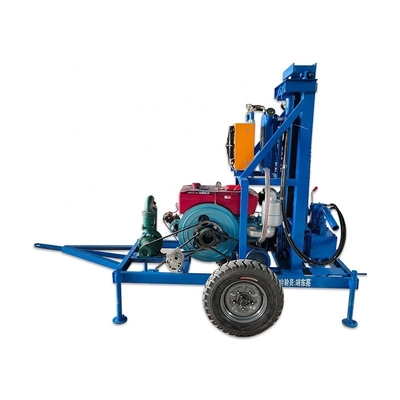

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 5

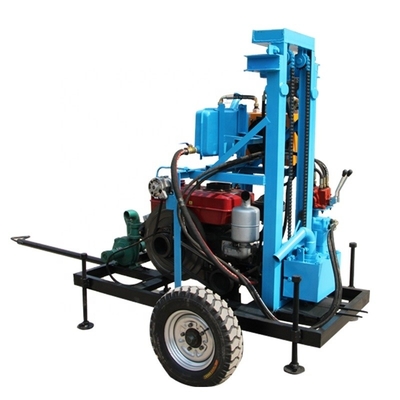

150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 6

Product Advantages

1.Small and lightweight ；The small drilling rig occupies a small area and is light in weight. It can be installed inside or outside the house and can be disassembled. 2.Fast drilling ；Replacing the drill pipe bit can make 1-inch, 1.5-inch, and four-inch plastic pipes and pvc pipes of different diameters for deep. 3.Water wells Optional multiple versions ；The machine is available in electric,diesel and gasoline models to meet customer needs.
Usage scenario
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 7
Pruduct Show
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 8
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 9
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 10
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 11
Product packaging
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 12
The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.
Company Profile
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 13
Henan Be Focus Mechanical Equipment Co.,Ltd.is a professional production and processing company for steel machinery,concrete mixers,road machinery,batching machines,etc.It has a complete and scientific quality management system.Henan Be Focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery.In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on.Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders.In addition,our professional R &:D team will provide you with the most convenient service,Since your order, we can provide the best products and service for you.
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 14
Corporate Culture
All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term partners.
Excellent partner
150 Meters Depth Diesel Water Well Drilling Rig Machine with and 1.8m Lift Height 15
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry Certificate
FAQ
1.Q: Are you the original manufacturer? A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory.
2.What are your warranty terms? A: We provide different warranty periods for different products. For detailed warranty terms, please contact us.
3. Q: Delivery time A: It takes 3-5 days for inventory products, and customized products need to be determined according to products
4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or VISA .
