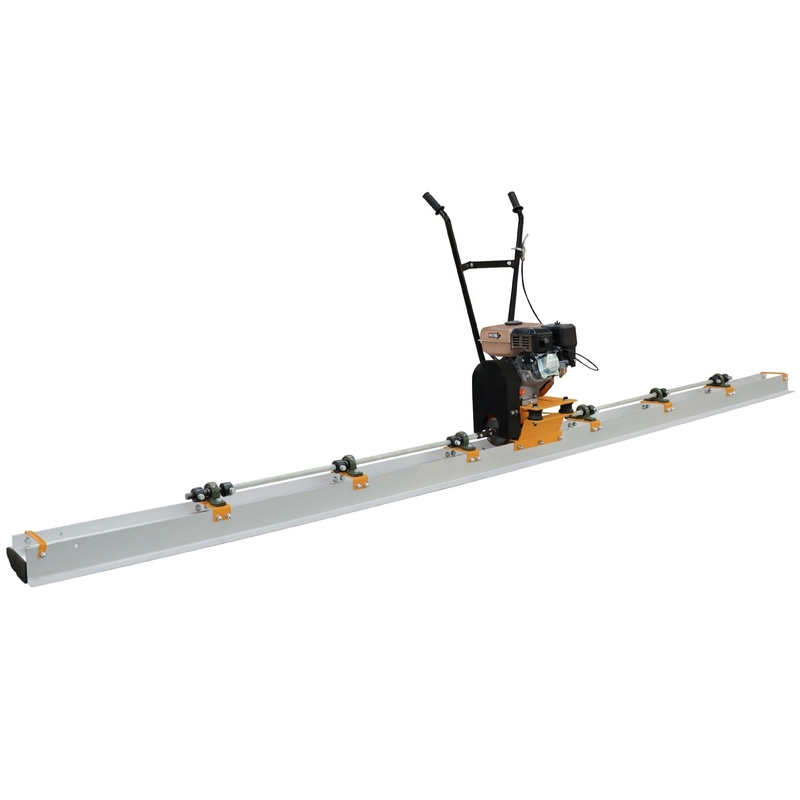

600450450 mm Gasoline Concrete Handheld Vibrating Concrete Screed for Construction

Large Image : 600*450*450 mm Gasoline Concrete Handheld Vibrating Concrete Screed for Construction

Product Details:

Place of Origin:	HENAN,CHINA
Brand Name:	BE-Focus
Certification:	CE/ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$168.00/boxes 1-4 boxes

Contact Now

600450450 mm Gasoline Concrete Handheld Vibrating Concrete Screed for Construction

Description

Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	Hot Product 2023	Warranty Of Core Components:	1 Year
Core Components:	Engine, Bearing, Motor	Condition:	New
Production Capacity:	5-10 M / Min	Power:	1.2 Kw
Max. Paving Thickness:	50 Mm	Dimension(LWH):	600450450 Mm
Weight:	28 Kg	Warranty:	1 Year
Hydraulic Pump Brand:	Customized	Hydraulic Valve Brand:	Huade
Engine Brand:	ShangChai	UNIQUE SELLING POINT:	Easy Maintenance
Product Name:	Concrete Vibrating Level Ruler	Application:	Concrete Surface Level
Engine:	Gasoline/Electric/Diesel Engine	Ruler Length:	2-10 M Customized
Fuel Tank:	3.6L	Control Type:	Hand-held
Max.Speed:	3600rpm	Max.output:	5.5hp

Product Description

The vibrating screed rule is mainly used for concrete construction, which can scrape the concrete, discharge the bubbles in the concrete and enhance the density of the concrete. It is suitable for large-area floor construction such as various standard factory buildings, parking lots, warehouses and frame buildings.

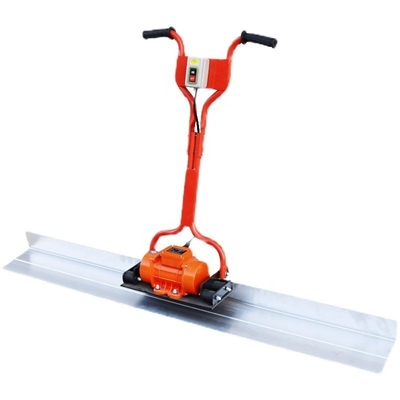

200w Electric Concrete Vibrating Ruler Vibrating Power Screed

Product Paramenters

Metric
Model	BS-1	BS-2	BS-3	BS-4	BS-5
Dimensions	4202901000mm	420290960mm	420300980mm	420300980mm	20003001200mm
Type	gasoline	gasoline	gasoline	gasoline	gasoline
Screed size	2-5m customized	2-5m customized	2-5m customized	2-5m customized	8m customized
Max output	1.6 kw	0.33kw	1.2 kw	1.2 kw	3 kw
Max speed	10000rpm	10000rpm	10000rpm	10000rpm	10000rpm
Drive System	fully enclosed shaft	Aluminum alloy closed shaft	Aluminum alloy closed shaft	Flexible shaft	Flexible shaft
Weight	28 kg	25kg	24 kg	26 kg	40kg

Product details

Product Advantages

1. It replaces the two processes of roller and scraping ruler in the traditional construction process, reduces the cost and improves the efficiency. 2. The aluminum alloy material used in the fuselage is light, easy to use, safe and high in flatness. 3. It uses titanium magnesium aluminum alloy scraper with high flatness. 4. Its handle height can be adjusted, suitable for operators of different heights. 5. Its shock absorber can reduce the vibration of the upper engine and armrest. 6. Its blade is easy to replace, easy to operate and easy to maintain.

Usage scenario

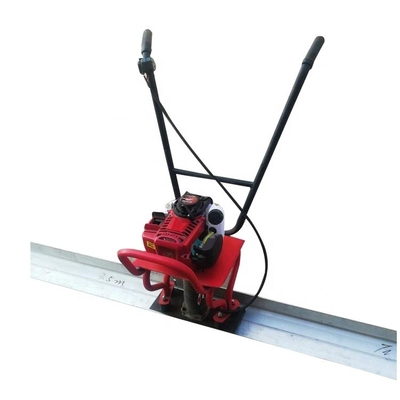

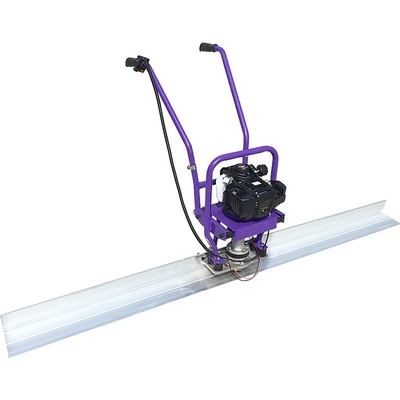

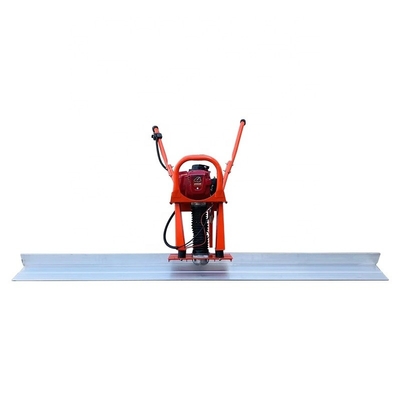

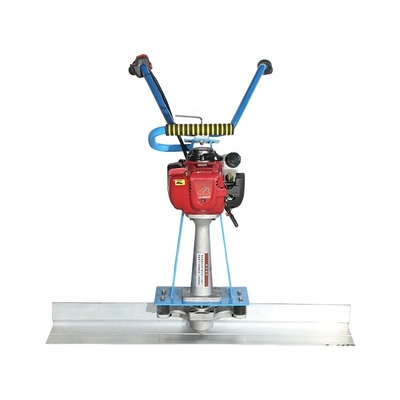

Pruduct Show

Product packaging

The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.

Company Profile

Henan Be Focus Mechanical Equipment Co.,Ltd.is a professional production and processing company for steel machinery,concrete mixers,road machinery,batching machines,etc.It has a complete and scientific quality management system.Henan Be Focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery.In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on.Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders.In addition,our professional R &:D team will provide you with the most convenient service,Since your order, we can provide the best products and service for you.

Corporate Culture

All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term partners.

Excellent partner

Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.

FAQ

1.Q: Are you the original manufacturer? A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms? A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or VISA .
