Vibratory Floor Paving Concrete Laser Screed Leveling Machine with 3200*27001120mm Size

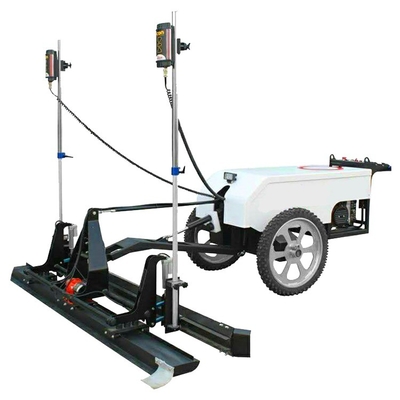

Large Image : Vibratory Floor Paving Concrete Laser Screed Leveling Machine with 3200*27001120mm Size

Product Details:

Place of Origin:	Henan, China
Brand Name:	BE-Focus

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$8,000.00/sets >=1 sets

Contact Now

Vibratory Floor Paving Concrete Laser Screed Leveling Machine with 3200*27001120mm Size

Description

Applicable Industries:	Building Material Shops, Construction Works , Pavement Machinery	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Scraper, Vibrating Plate	Condition:	New
Power:	3kw	Max. Paving Thickness:	350mm
Dimension(LWH):	3200*27001120mm	Weight:	260 Kg
Warranty:	1 Year	Engine Brand:	HONDA
UNIQUE SELLING POINT:	Long Lifetime	Fuel Volume:	17L
Fuel Consumption:	0.8-1.2L/h	Vibration Motor Speed:	4000rpm
Working Speed:	4m-20m/min	Walking Speed:	0-28m/min
Plate Width:	2500/3000mm	Port:	QingDao/ShangHai/TianJin/Dalian/Shenzhen

Product model

Do you have the following problems?

Traditional construction leveling, support formwork, dot, reinforcement,

Laser leveling in one molding

Product upgrades in many aspects, equipped with liquid crystal display, full touch control system

Product details

Model	Working double wheel
type	Mechanical electric walking type
Engine model	Honda
Power	3KW
Laser control system	Dennis,USA
Laser control mode	Automatic leveling of laser microcystem
Laser system control effect	Flat,inclined,or double slope
Laser emision system	Topcon Japan/Leica Switzerland
Laser receiving system	Swiss Leica
Suspension mode	Flat head independent suspension system
Vibrating plate width	3000MM
Leveling thickness	50-350mm
Fuel volume	17L
Excitation force	0.8-1.2L/H
Vibration motor speed	4000rpm
Travel drive	Delta servo/Mitsubishi servo
Working speed	4M-20M/Min
Walking speed	0-28M/Min
Walking tire	Stab resistant narrow tire/inflatable wide tire
Walking mode	Manual adjustment/continously variable speed
Fuselage size	320027001120MM
Fuselage weight	260Kg

Product advantage

Here are four reasons to have it

It's worth having for reason NO.1

Automatic manual dual control system

Concrete laser levelling machine, used in large area floor construction, the ground elevation is easy to control,the ground flatness error is very small

It's worth having for reason NO.2

Two - wheel independent drive differential

finish system

Due to the use of laser point, the whole floor only needs 1-2 datum points elevation, which can reduce the error caused by multiple datum points

It's worth having for reason NO.3

Intelligent button touch screen dual

control system

The laser emitter is arranged independently, and the floor elevation is always controlled by the plane composed of the rotating beam emitted by the laser emitter.

It's worth having for reason NO.4

Real-time monitoring and control system status

No matter where the concrete laser levelling

machine goes, it can ensure that the overall

elevation of the ground after spreading is not

affected

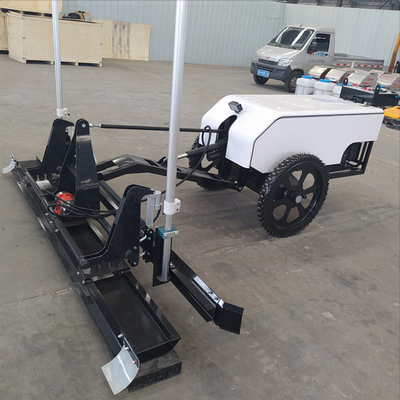

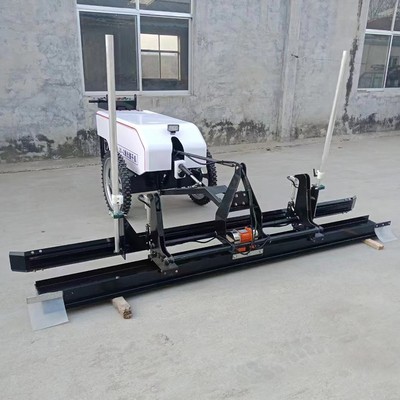

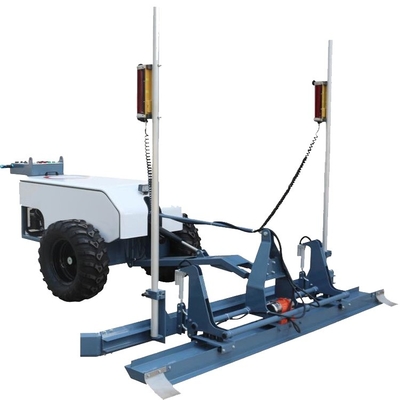

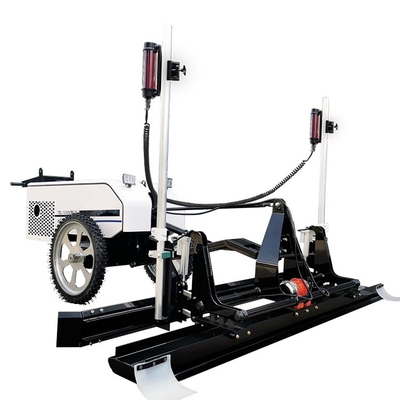

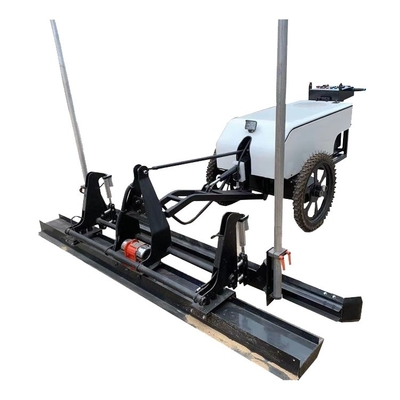

Pruduct Show

Why Choose Us

Henan Be Focus Mechanical Equipment Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co., Ltd.was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Production Capacity

The company cooperates with all major engineering projects

The company cooperates with all major engineering projects

Product packaging

FAQ

Q1.What are your terms of payment? A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging. Q2. What are your delivery terms? Answer: EXW, FOB, CFR, CIF. Q3. How about your delivery time? A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order. Q4. What is the warranty of our machine? Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video. Q5. What are your packing conditions? Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed. Q6. Do you test all goods before delivery? Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine. Q7. Do you give priority to providing vulnerable parts to trading customers? Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories. Q8: How do you maintain a long-term good relationship with our business? Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers; 2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends. Q9. Do you have a certificate for your machine? Ans.: All our products have CE and ISO9001 certificates.
