3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point

I'm Online Chat Now

3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point

3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point

Large Image :  3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $8,000.00/sets 1-4 sets
Packaging Details: Thickened specifications of superior wood provide protection for your goods.<br>Of course, we can also pack according to your needs.
Supply Ability: 1000 Set/Sets per Month

3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point

Description
Applicable Industries: Building Material Shops, Construction Works , Pavement Machinery Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Scraper, Vibrating Plate Condition: New
Production Capacity: Be-focus Power: 3kw, 3kw
Max. Paving Thickness: 350mm Dimension(L*W*H): 3200*27001120mm
Weight: 260 Kg Warranty: 1 Year
Engine Brand: HONDA UNIQUE SELLING POINT: Short Turning Radius
Fuel Volume: 17L Fuel Consumption: 0.8-1.2L/h
Vibration Motor Speed: 4000rpm Working Speed: 4m-20m/min
Walking Speed: 0-28m/min Plate Width: 2500/3000mm
Product Name: Concrete Laser Levelling Machine MOQ: 1 Unit
Vibiating Plate Width: 2500/3000mm Port: Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot

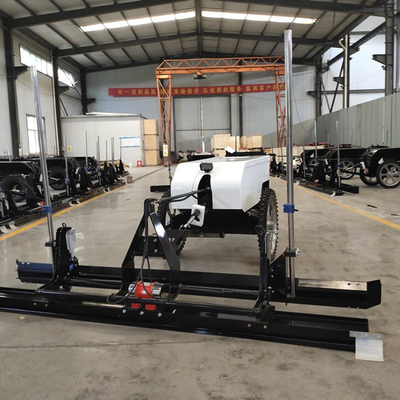

Pruduct Show
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 0

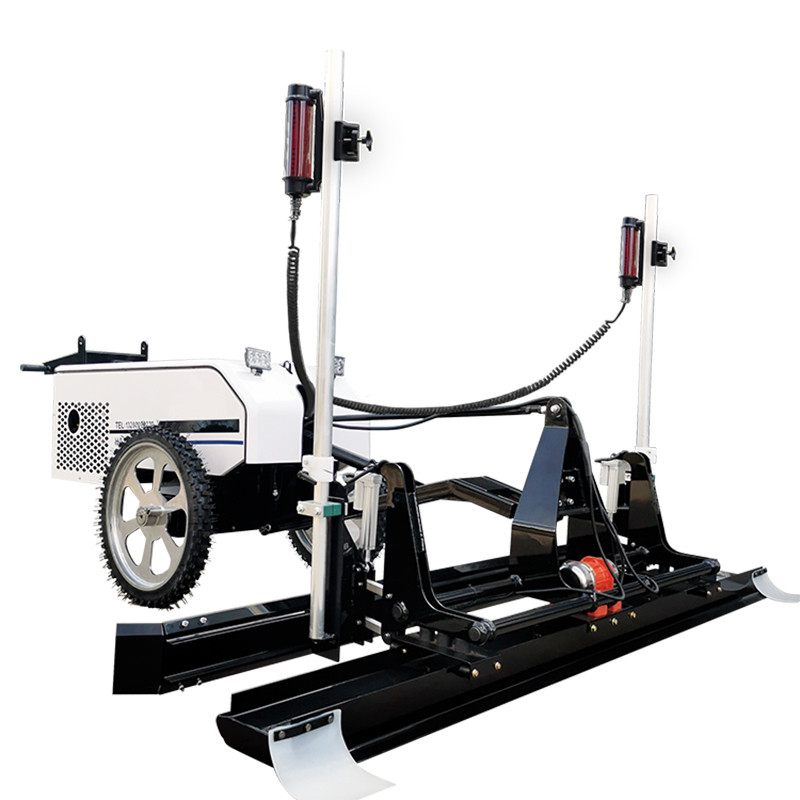

Product Structures
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 1
Product Paramenters
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 2
model
Walking double wheel
type
Mechanical electric walking type
Engine model
Honda engine
power
3kw
Laser control system
Dennis, USA
Laser control mode
Automatic leveling of laser microsystem
Laser system control effect
Flat, inclined, or double slope
Laser emission system
Topcon Japan/Leica Switzerland
Laser receiving system
Swiss Leica
Suspension mode
Flat head independent suspension system
Vibrating plate width
2500/3000mm
Leveling thickness
50-350mm
Fuel volume
17L
Fuel consumption
0.8-1.2L/h
Excitation force
2000N
Vibration motor speed
4000rpm
Travel drive
Delta servo/Mitsubishi servo
Working speed
4m-20m/min
Walking speed
0-28m/min
Walking tire
Stab resistant narrow tire/inflatable wide tire
Walking mode
Manual adjustment/continuously variable speed
Fuselage size
3200 X2700 X1120mm
Fuselage weight
260kg
Our Advantages
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 3

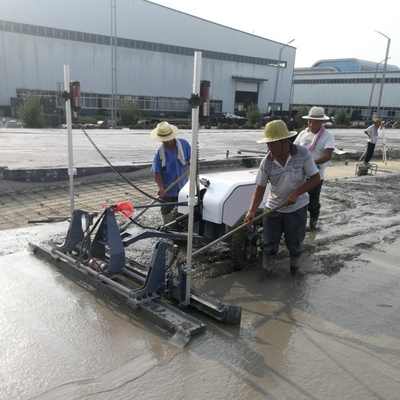

Usage scenario
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 4
Packaging & Shipping
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 5
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 6
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 7
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 8
Thickened specifications of superior wood provide protection for your goods.
Of course, we can also pack according to your needs.
Company Information
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 9

Henan Be-focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be-focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.
Hot Selling Laser Epdm Paving Machine
Cooperation projects
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 10
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 11
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 12
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 13
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 14
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 15
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 16
3200*27001120mm Laser Epdm Paving Machine Short Turning Radius Unique Selling Point 17
Many national construction teams choose to cooperate with us and look forward to working with you hand in hand.
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q9.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
