Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site

Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site

Large Image :  Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site

Product Details:
Place of Origin: Henan, China
Brand Name: Be focus
Model Number: 90T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $420.00/sets 1-9 sets
Contact Now

Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site

Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Construction Works , Energy & Mining Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Hot Product 2024 Warranty Of Core Components: 1 Year
Core Components: Engine, Motor Condition: New
Application: Ground Compaction Power: 6.5HP
Dimension(L*W*H): 1050*370*690 Mm Weight: 126 Kg
Warranty: 1 Year Engine: 6.5HP
UNIQUE SELLING POINT: Low Noise Engine Type: Air-cooled 4-cycle Gasoline
Centrifugal Force: 15kn Speed: 22m/ Min
Plate Size Mm(in): 370*690 Mm Max Speed: 3600
Fuel Tank: 5.5L

Product Description
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 0
Plate compactor is suitable for tamping the engineering foundation, curb and asphalt pavement when building roads, streets, buildings, canals and bridges in highways, municipal administration, construction, water conservancy and other areas. In a narrow working environment, it is convenient to move, stable to operate, and does not leave dead ends in work.
Factory Supply Road Roller Compactor Machines Vibrating Plate Compactors
Specification

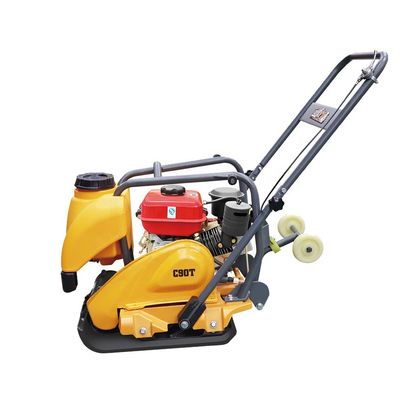

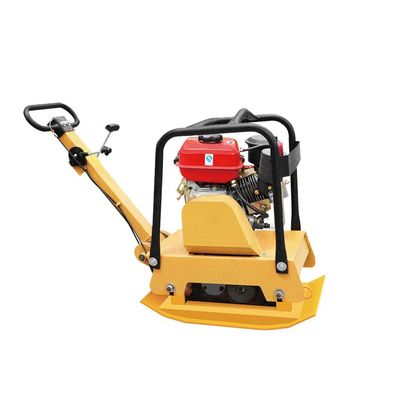

Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 1
Metric
model
C90T
FCP 200
type
single-direction vibratory plates
reversible vibratory plates
tamping depth
30 cm
30 cm
power type
gasoline/diesel
gasoline/diesel
vibration intensity
15kn
15kn
vibration frequency
2800-5500vpn
5500vpn
gradeability
<25°
<25°
walking speed
15-30 m/min
15-30 m/min
working area
500*520 mm
370*690 mm
weight
90 kg
126 kg
size
1050*500*520 mm
1050*370*690 mm
Imperial
model
C90T
FCP 200
type
single-direction vibratory plates
reversible vibratory plates
tamping depth
11.8''
11.8''
power type
gasoline/diesel
gasoline/diesel
vibration intensity
1.5 t
1.5 t
vibration frequency
2800-5500vpn
5500vpn
gradeability
<25°
<25°
weight
198 ib
278 ib
size
41''*20''21''
41''*15''*27''
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 2
Product Details
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 3
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 4

Product Advantages

1. Foldable handle design and walking wheel are convenient for transportation.
2. Wear-resistant bottom plate: prolong service life, open design reduces dirty buildings.
3. Heavy shock absorber reduces vibration of upper deck.
4. Excellent quality, low fuel consumption, simple operation and quick construction.
Factory Supply Road Roller Compactor Machines Vibrating Plate Compactors
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 5
Packing & Delivery
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 6
We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.
Company Profile
Henan Be Focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 7
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 8
Certifications
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 9
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 10
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 11
Customer Photos
Max Speed 3600 Vibratory Compactor for Concrete Compaction on Construction Site 12
FAQ
1. Who are we?
We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 21-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine

4. Why should you buy from us not from other suppliers?
Henan Be Focus Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean,Hindi,Italian
