High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size
High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size

Large Image :  High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size

Product Details:
Place of Origin: Henan, China
Brand Name: Be-focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,100.00/sets 1-9 sets
Packaging Details: Thickened specifications of superior wood provide protection for your goods.<br>Of course, we can also pack according to your needs.
Supply Ability: 1000 Set/Sets per Month
Contact Now

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size

Description
Applicable Industries: Construction Works  Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Engine, Motor Condition: New
Max. Conveying Distance: Horizontal 200m Vertical 20m Max Aggregate Size: 20mm
Hose Inner Diameter: 51 Mm Air Consumption: 8-10m3/min
Weight: 600 Kg Warranty: 1 Year
UNIQUE SELLING POINT: High Operating Efficiency Port: Tianjin Port, Qingdao Port, Shanghai Port And Lianyungang Port

Production Show

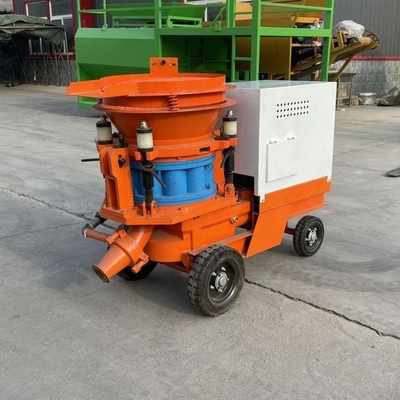

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 0
Dry concrete spraying equipment is the most ideal equipment for concrete bolt spraying construction, wet spraying, and wet spraying. It is widely used in the construction of anchor and shotcrete support for tunnels, culverts, and underground projects. The uniquely manufactured rubber bushing block on the hydrocyclone facilitates the delivery of the mixture. Stable performance, convenient maintenance, energy saving, long service life, environmental protection, and improved coating quality.
Model
PZ-6
PZ-7
throughput
6m3/h
7m3/h
working pressure
0.2Mpa-0.4Mpa
0.2Mpa-0.4Mpa
Air consumption
8-10m3/min
8-10m3/min
Motor power
5.5KW
7.5KW
Woltage
380V
380V
transmission distance
200M
200M
Transmission height
20M
20M
Maximum aggregate size
20mm
20mm
Outlet diameter
51mm
57mm
Weight
600KG
850KG
size
1520*900*1200mm
1600*900*1200mm
High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 1
Product details

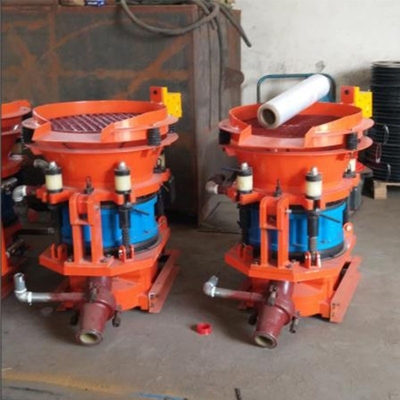

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 2

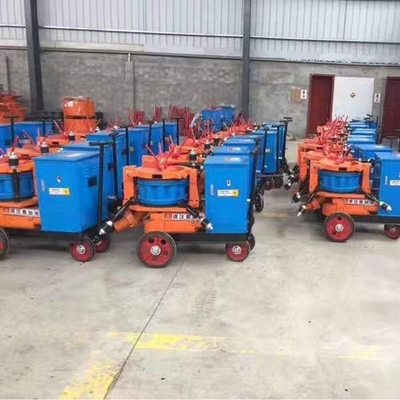

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 3

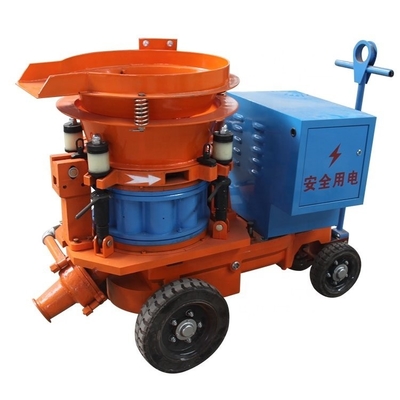

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 4
Product packaging

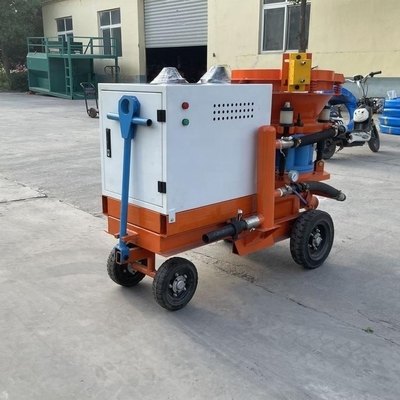

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 5
Company Profile

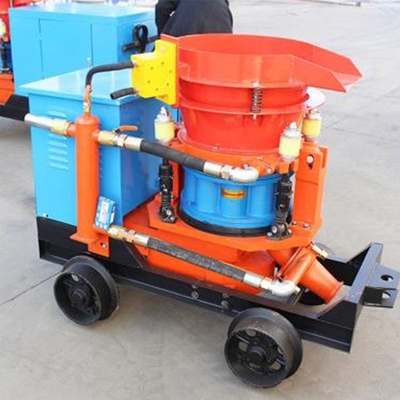

High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 6
Henan Be-focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be-focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.
High Output Shotcrete Machine with 51mm Hose Inner Diameter and 20mm Max Aggregate Size 7
FAQ
1. Q: Are you trading company or manufacturer? A: We are original equipment manufacturer. 2. Q: How long is your delivery time? A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines. 3. Q: Do you provide samples? Is it free or extra? A: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight. 4. Q: What is your terms of payment? A: We accept T/T, Alibaba Escrow etc.
