25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio

25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio

Large Image :  25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,091.45/sets >=10 sets
Contact Now

25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio

Description
Applicable Industries: Building Material Shops, Construction Works  Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Pressure Vessel Condition: Used
Max. Conveying Distance: 30m Max Aggregate Size: 15mm
Hose Inner Diameter: 20 Mm Air Consumption: 8-10m3/min
Voltage: 380v Power: 5.5
Dimension(L*W*H): 1520*900*1200 Weight: 600 Kg
Warranty: 1 Year UNIQUE SELLING POINT: High-efficiency
Application: Construction Product Name: Concrete Shotcrete Machine
Rated Voltage: 380v Service: 24hour Online After-sale Service
Motor Power: 6 M³/h Applicable Materials: Construction Works
Water Cement Ratio: 0.4-0.45 Operating Air Pressure: 0.2~0.4MPa

Production Show
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 0
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 1
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 2
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 3

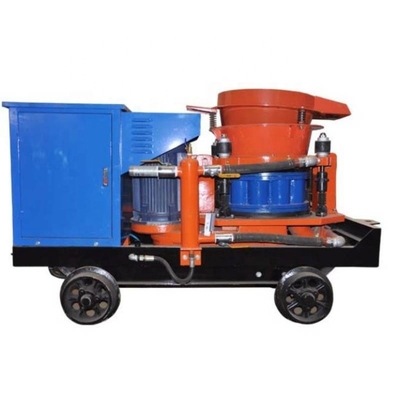

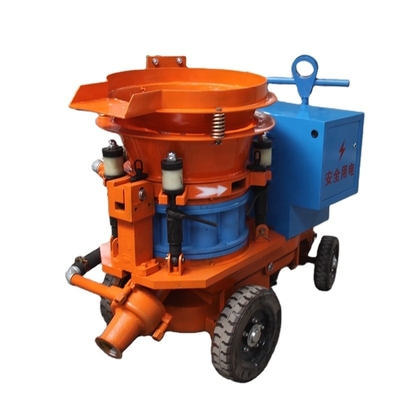

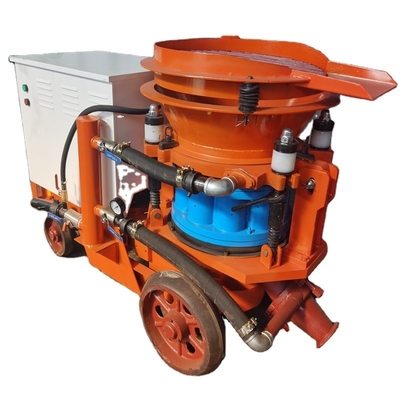

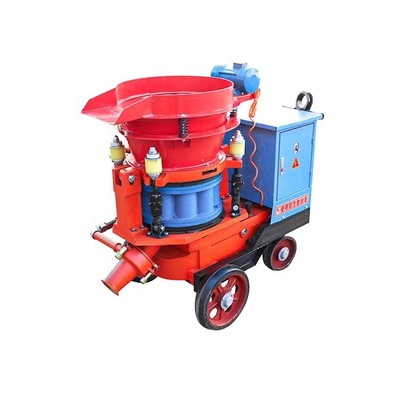

Concrete shotcrete machine

The shotcreting machine is a new type of high-efficiency shotcreting machine. The equipment uses concrete pump to deliver concrete to the nozzle through the pipeline, and uses compressed air with accelerator to spray the concrete to the wall of the sprayed roadway.

Product parameters
Type
PZ-5
PZ-7
productive power
6m³/h
7m³/h
working pressure
0.2Mpa-0.4Mpa
0.2Mpa-0.4Mpa
Air consumption
8-10m³/min
8-10m³/min
Motor power
5. 5KW
5. 5KW
voltage
380V
380V
transmission distance
200M
200M
Transmission height
20M
20M
Maximum orthopedic particle size
20mm
20mm
Export direct
51mm
51mm
Weight
600KG
850KG
 size
1520*900*1200mm
1600*900*1200mm
Water-cement ratio
≤0.4-0.45
≤0.4-0.45
Material ratio
1：3--5
1：3--5
Feeding height
1.1M
1.1M

Product details
The concrete shotcrete machine has a remote control system, and the wireless remote control operation is simple and convenient. Moreover, the large arm and small arm of the telescopic shotcrete arm have automatic parallel function, stable performance, good construction quality, improved construction environment, and also played an important role in various construction fields.
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 4

Related accessories
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 5

Attention

This product is equipped with wearing parts that can be used for one year.Vulnerable parts are of good quality, but they need to be purchased later.

Scope of application
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 6
1.Slope support
In order to ensure the safety of the slope and its environment, the retaining, reinforcement and protection measures are taken for the slope. There are many kinds of slope support, one of which is called bolting and shotcrete support.

2.Foundation pit support
Foundation pit support is to ensure the safety of underground structure construction and the surrounding environment of the foundation pit, and to adopt support, reinforcement and protection measures for the side wall of the foundation pit and the surrounding environment.
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 7
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 8
3.Tunnel support
The main supporting methods are arch support, anchor bolt support, anchor shotcrete support, anchor mesh shotcrete support, anchor cable support, metal arch support, stone support, reinforced concrete support, and of course, joint support between various types of supports.

4.Bolting and shotcrete support
Bolt and shotcrete support is composed of anchor rod and shotcrete panel. Its main function is to limit the free development of surrounding rock deformation, adjust the stress distribution of surrounding rock, and prevent rock mass from falling loose.
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 9
Why Choose Us
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 10

Company profit

Xinxiang Zhongtun Electromechanical Equipment Co., Ltd. was founded in 1938 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 11
Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.

Production Capacity
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 12
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 13
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 14
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 15
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 16
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 17

The company cooperates with all major engineering projects

R&D capability
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 18
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 19
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 20

Packing
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 21
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 22
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 23
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 24
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 25

Factory inspection report
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 26
25 Ton Truck Crane Qy25k-ii with 0.4-0.45 Water Cement Ratio 27


FAQ


Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms? Answer: EXW, FOB, CFR, CIF. Q3. How about your delivery time?
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine? Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions? Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed.
Q6. Do you test all goods before delivery?
Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.
Q7. Do you give priority to providing vulnerable parts to trading customers?
Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories.
Q8: How do you maintain a long-term good relationship with our business?
Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine?
Ans.: All our products have CE and ISO9001 certificates.
