Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable

Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable

Large Image :  Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable

Product Details:
Place of Origin: Henan, China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $9,900.00 - $33,500.00/sets
Packaging Details: Thickened specifications of superior wood provide protection for your goods.<br>Of course, we can also pack according to your needs.
Supply Ability: 1000 Set/Sets per Year
Contact Now

Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable

Description
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works  Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2021 Warranty Of Core Components: 1 Year
Core Components: Motor Condition: New
Max. Conveying Distance: 150m Max Aggregate Size: 15
Hose Inner Diameter: 57 Mm Power: 22kw
Dimension(L*W*H): 3.9*1.5*1.5m Weight: 2000 Kg
Warranty: 1 Year UNIQUE SELLING POINT: High Operating Efficiency
Port: Tianjin Port, Qingdao Port, Shanghai Port And Lianyungang Port

Pruduct Show
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 0
The hydraulic wet spraying machine has obvious advantages such as low operating dust, less spraying rebound, protecting the working environment, saving raw materials, and improving the quality of the spraying layer. Adopting hydraulic pumping, the system has high reliability and stable delivery capacity, ensuring fast, uniform, and stable shotcrete operations. The hydraulic wet spraying machine uses the main motor to drive the hydraulic pump to generate power, causing the pistons of two working cylinders to alternately move back and forth, causing one working cylinder to suck in materials and the other working cylinder to push materials. Each cylinder is connected to each other, causing the concrete inside the working cylinder to be pushed out and enter the mixed flow pipe through the S pendulum tube. After being blown by compressed air at the mixed flow pipe, it reaches the nozzle through the conveying pipe, and a certain proportion of accelerator is sprayed at the nozzle. After mixing, spray directly on the surface to be sprayed.
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 1
Product Structures
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 2
Equipment model

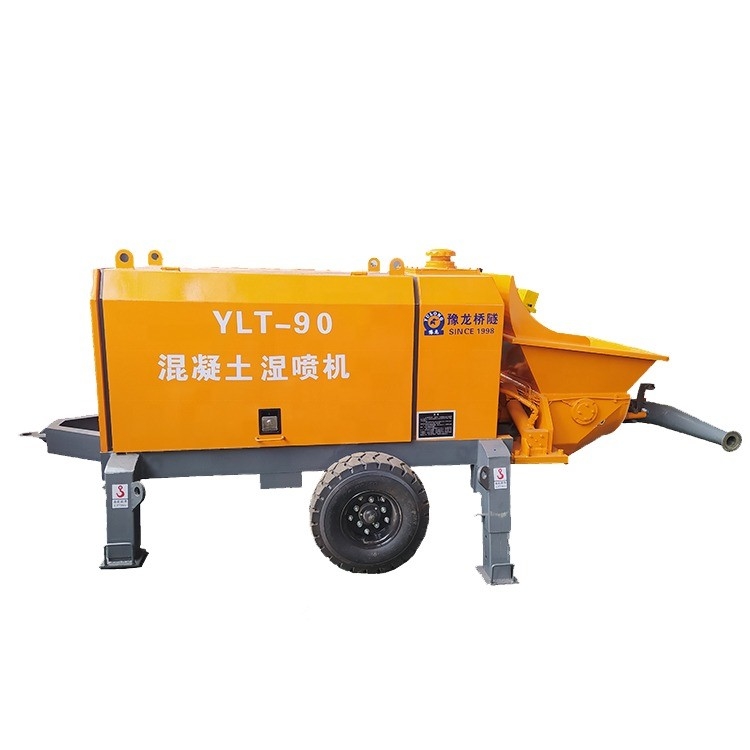

YLT-90
throughput
3-8m³/H
Voltage level
380V
Feeding height
1100MM
Conveying distance
150/80M
Aggregate size
≤15MM
Motor power
22KW
Delivery pipe
φ57MM
Working wind pressure
0.4-0.6MPA
Host size
3.9*1.5*1.5M
System wind pressure
0.4-0.7MPA
OperatingWeight
2000KG
Product Paramenters
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 3
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 4
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 5
Usage scenario
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 6
Packaging & Shipping
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 7
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 8
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 9
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 10
Thickened specifications of superior wood provide protection for your goods.
Of course, we can also pack according to your needs.
Company Information
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 11
Concrete Wet Spraying Machine 22kw for Cleaning Convenient at Affordable 12
Many national construction teams choose to cooperate with us and look forward to working with you hand in hand.
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q9.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
