Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head

Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head

Large Image :  Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,470.20/sets >=10 sets
Contact Now

Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head

Description
Features: Grouting Operation Application: Civil Houses And Public Buildings
Condition: New Production Capacity: 2-3 Hours
Warranty: 1 Year Dimension(L*W*H): 1400*640*900mm
Power: 5.5KW Voltage: 380V
Applicable Industries: Hotels, Building Material Shops, Construction Works  Weight (KG): 280
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine, Motor, Pressure Vessel, Pump
UNIQUE SELLING POINT: Fully Hydraulic System Product Name: Screw Grouting Pump
Application Site: Engineering Construction Suitable For: Building Project
Usage: Wall Plaster Smoothing Advantage: High Quality
Unit Weight: 280KG Motor Power: 5.5KW
After Warranty Service: Video Technical Support, Online Support

Pruduct Show
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 0
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 1
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 2
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 3

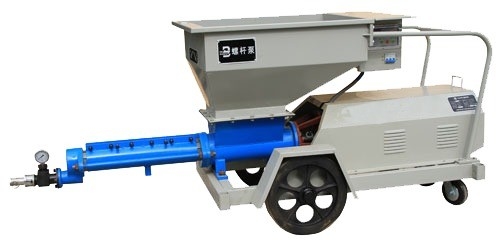

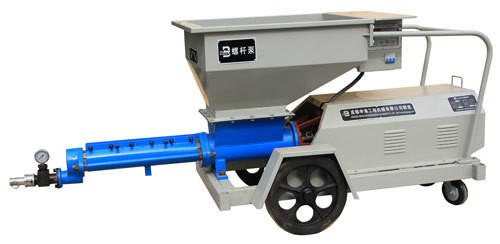

Screw grouting pump

The screw grouting pump is a grouting operation that can achieve various viscosity and fluidity of grout such as cement slurry, mortar, grouting materials, waterproof materials, etc. It is widely used in grouting projects such as waterproof and leakage stoppage, pouring grouting, door and window grouting, wall grouting, anchor rod grouting, hollow drum grouting, etc.Pulseless, sprayable with high viscosity
Product Paramenters
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 4
Model
Type 400
Power
5.5kw
Voltage
380V
Weight
280kg
Communication distance
350m
Conveying distance (cement)
80m
Conveying distance (cement+sand)
60m
Hopper volume
160L
Discharge capacity
2000L-3500L
measurement
1400*640*900mm
Details of the product
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 5
Single screw medium delivery pump

1.Discharge body    2.determinant    3.rotor     4.cardan joint     5.jackshaft     6.Suction chamber     7.Shaft seal
8.bearing      9. transmission shaft      10.Bearing body

Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 6
1. Pressure gauge        2. booster screw set         3. electric control box         4. hopper
 5. transmission part       6. driving part            7.shield         8.frame
1.The booster screw group consists of a stator, a rotor, and an adjustment sleeve. 2.In addition to being made of imported high wear-resistant rubber materials, the stator is also inlaid with a steel outer sleeve outside the rubber sleeve, so compared to traditional screw grouting pumps, its output pressure is higher and its service life is longer; 3.In addition to using high-quality alloy materials, the rotor also undergoes special surface treatment, resulting in higher wear resistance and longer service life; 4. The tightness of a row of bolts on the adjusting sleeve adjusts the degree to which the outer sleeve hugs the stator, thereby adjusting the output pressure.

Application Scenario
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 7


Basement grouting


Subway grouting


Building grouting

Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 8


Bridge grouting


Tunnel grouting


Mine grouting

Why Choose Us
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 9
Company profit
Be Focus Electromechanical Equipment Co., Ltd. was founded in 1998 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 10

Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.

Production Capacity
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 11
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 12
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 13
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 14
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 15

The company cooperates with all major engineering projects

R&D capability
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 16
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 17
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 18
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 19
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 20
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 21

Packing
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 22

Factory inspection report
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 23
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 24
Grouting Operation and Construction Works Made Easy with Hdl-308 Top Drive Power Head 25


FAQ

Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.
Q3. How about your delivery time? A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine?
Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed. Q6. Do you test all goods before delivery? Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine. Q7. Do you give priority to providing vulnerable parts to trading customers? Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories. Q8: How do you maintain a long-term good relationship with our business? Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers; 2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine? Ans.: All our products have CE and ISO9001 certificates.
