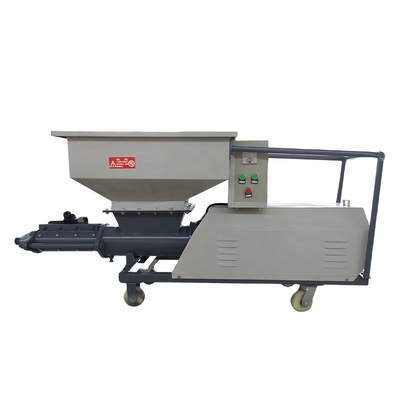

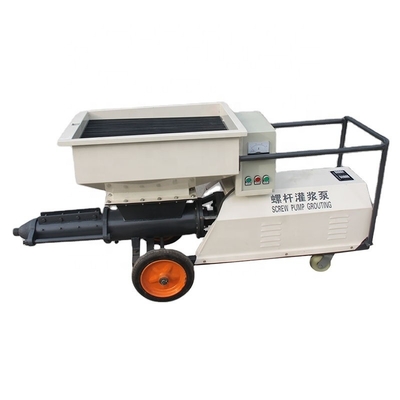

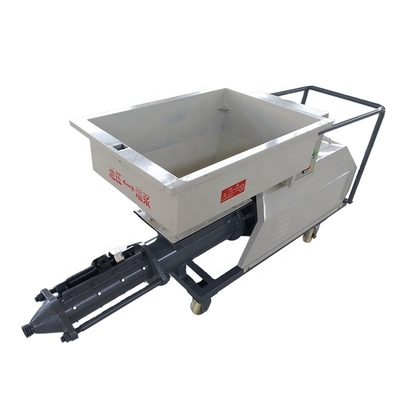

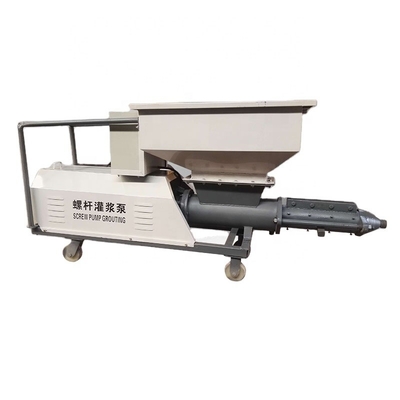

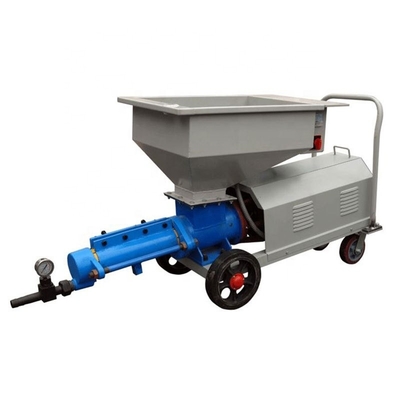

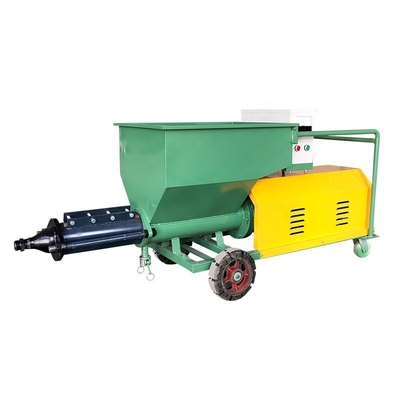

Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation

Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation

Large Image :  Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation

Product Details:
Place of Origin: Henan, China
Brand Name: BE-Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,470.20/sets >=10 sets
Contact Now

Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation

Description
Features: Grouting Operation Application: Civil Houses And Public Buildings
Condition: New Production Capacity: 2-3 Hours
Warranty: 1 Year Dimension(L*W*H): 1400*640*900mm
Power: 5.5KW Voltage: 380V
Applicable Industries: Hotels, Building Material Shops, Construction Works  Weight (KG): 280
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine, Motor, Pressure Vessel, Pump
UNIQUE SELLING POINT: Fully Hydraulic System Product Name: Screw Grouting Pump
Application Site: Engineering Construction Suitable For: Building Project
Usage: Wall Plaster Smoothing Advantage: High Quality
Unit Weight: 280KG Motor Power: 5.5KW
After Warranty Service: Video Technical Support, Online Support Port: QingDao/ShangHai/TianJin/Dalian/Shenzhen

Pruduct Show
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 0
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 1
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 2
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 3

Screw grouting pump

The screw grouting pump is a grouting operation that can achieve various viscosity and fluidity of grout such as cement slurry, mortar, grouting materials, waterproof materials, etc. It is widely used in grouting projects such as waterproof and leakage stoppage, pouring grouting, door and window grouting, wall grouting, anchor rod grouting, hollow drum grouting, etc.Pulseless, sprayable with high viscosity
Product Paramenters
Mini Screw Pump Cement Mortar Pump With Screw Pump Stator And Rotor/maquina Para Proyectar Mortero
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 4
Model
Type 400
Power
5.5kw
Voltage
380V
Weight
280kg
Communication distance
350m
Conveying distance (cement)
80m
Conveying distance (cement+sand)
60m
Hopper volume
160L
Discharge capacity
2000L-3500L
measurement
1400*640*900mm
Details of the product
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 5
Single screw medium delivery pump

1.Discharge body    2.determinant    3.rotor     4.cardan joint     5.jackshaft     6.Suction chamber     7.Shaft seal
8.bearing      9. transmission shaft      10.Bearing body

Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 6
1. Pressure gauge        2. booster screw set         3. electric control box         4. hopper
 5. transmission part       6. driving part            7.shield         8.frame
1.The booster screw group consists of a stator, a rotor, and an adjustment sleeve. 2.In addition to being made of imported high wear-resistant rubber materials, the stator is also inlaid with a steel outer sleeve outside the rubber sleeve, so compared to traditional screw grouting pumps, its output pressure is higher and its service life is longer; 3.In addition to using high-quality alloy materials, the rotor also undergoes special surface treatment, resulting in higher wear resistance and longer service life; 4. The tightness of a row of bolts on the adjusting sleeve adjusts the degree to which the outer sleeve hugs the stator, thereby adjusting the output pressure.

Application Scenario
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 7


Basement grouting


Subway grouting


Building grouting

Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 8


Bridge grouting


Tunnel grouting


Mine grouting

Why Choose Us
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 9
Henan Be Focus Mechanical Equipment Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co., Ltd.was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Production Capacity
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 10
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 11
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 12
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 13
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 14

The company cooperates with all major engineering projects

R&D capability
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 15
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 16
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 17
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 18
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 19
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 20

Packing
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 21

Factory inspection report
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 22
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 23
Building Material Shops Mini Screw Pump for Cement Mortar Fully Hydraulic Operation 24


FAQ

Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.
Q3. How about your delivery time? A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine?
Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed. Q6. Do you test all goods before delivery? Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine. Q7. Do you give priority to providing vulnerable parts to trading customers? Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories. Q8: How do you maintain a long-term good relationship with our business? Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers; 2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine? Ans.: All our products have CE and ISO9001 certificates.
