Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete

Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete

Large Image :  Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,470.20/sets >=10 sets
Contact Now

Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete

Description
Features: Grouting Operation Application: Civil Houses And Public Buildings
Condition: Used Production Capacity: 2-3 Hours
Warranty: 1 Year Dimension(L*W*H): 1400*640*900mm
Power: 5.5KW Voltage: 380V
Applicable Industries: Hotels, Building Material Shops, Construction Works  Weight (KG): 280
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine, Motor, Pressure Vessel, Pump
UNIQUE SELLING POINT: Fully Hydraulic System Product Name: Screw Grouting Pump
Application Site: Engineering Construction Suitable For: Building Project
Usage: Wall Plaster Smoothing Advantage: High Quality
Unit Weight: 280KG Motor Power: 5.5KW
After Warranty Service: Video Technical Support, Online Support

Pruduct Show
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 0
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 1
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 2
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 3

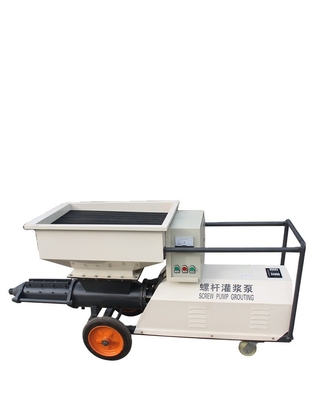

Screw grouting pump

The screw grouting pump is a grouting operation that can achieve various viscosity and fluidity of grout such as cement slurry, mortar, grouting materials, waterproof materials, etc. It is widely used in grouting projects such as waterproof and leakage stoppage, pouring grouting, door and window grouting, wall grouting, anchor rod grouting, hollow drum grouting, etc.Pulseless, sprayable with high viscosity.
Product Paramenters
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 4
Model
Type 400
Power
5.5kw
Voltage
380V
Weight
280kg
Communication distance
350m
Conveying distance (cement)
80m
Conveying distance (cement+sand)
60m
Hopper volume
160L
Discharge capacity
2000L-3500L
measurement
1400*640*900mm
Details of the product
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 5
Single screw medium delivery pump

1.Discharge body    2.determinant    3.rotor     4.cardan joint     5.jackshaft     6.Suction chamber     7.Shaft seal
8.bearing      9. transmission shaft      10.Bearing body

Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 6
1. Pressure gauge        2. booster screw set         3. electric control box         4. hopper
 5. transmission part       6. driving part            7.shield         8.frame
1.The booster screw group consists of a stator, a rotor, and an adjustment sleeve. 2.In addition to being made of imported high wear-resistant rubber materials, the stator is also inlaid with a steel outer sleeve outside the rubber sleeve, so compared to traditional screw grouting pumps, its output pressure is higher and its service life is longer; 3.In addition to using high-quality alloy materials, the rotor also undergoes special surface treatment, resulting in higher wear resistance and longer service life; 4. The tightness of a row of bolts on the adjusting sleeve adjusts the degree to which the outer sleeve hugs the stator, thereby adjusting the output pressure.

Application Scenario
Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 7


Basement grouting


Subway grouting


Building grouting

Building Project Essential 5.5KW Mortar Plastering Machines For Screed Plaster Concrete 8


Bridge grouting


Tunnel grouting


Mine grouting
