Product Details:
|
| Features: | Easy To Operation | Application: | Civil Houses And Public Buildings |
|---|---|---|---|
| Condition: | Used | Warranty: | 1 Year |
| Dimension(L*W*H): | 1.7*0.68*1.1m | Power: | 7.5kw |
| Voltage: | 380v, 380V | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Construction Works |
| Weight (KG): | 300 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Bearing, Motor, Pressure Vessel | UNIQUE SELLING POINT: | High Operating Efficiency |

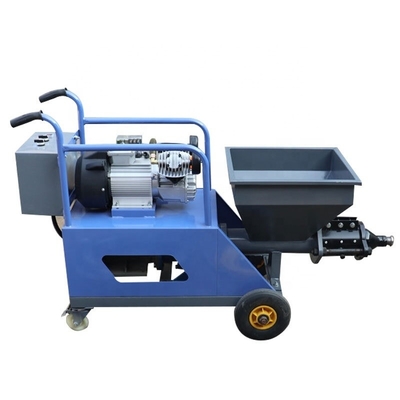

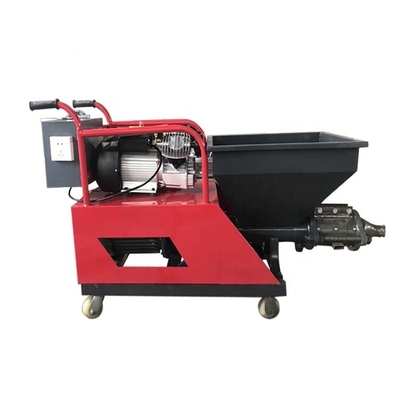

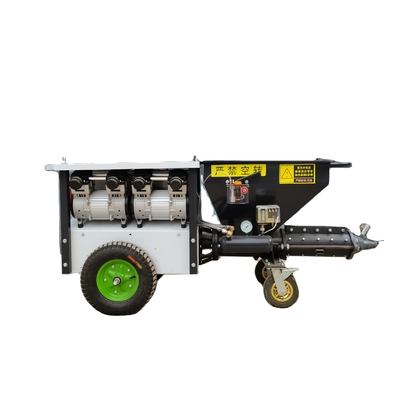

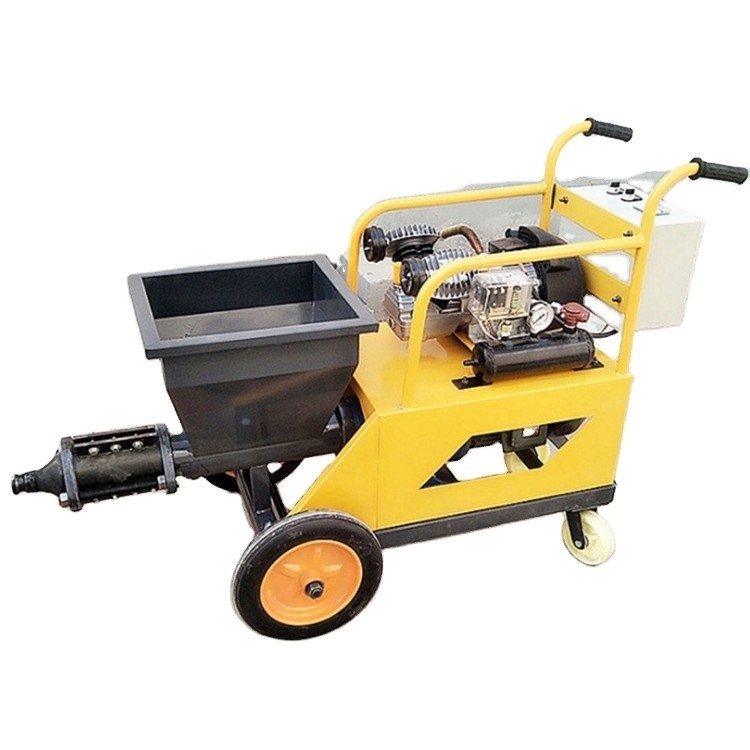

| Product Name: | Mortar Spraying Machine | Suitable For: | Building Project |
| Usage: | Wall Plaster Smoothing | Advantage: | Low Cost |
| Size: | 1.7*0.68*1.1m | Unit Weight: | 300kg |
| Motor Power: | 7.5ke |

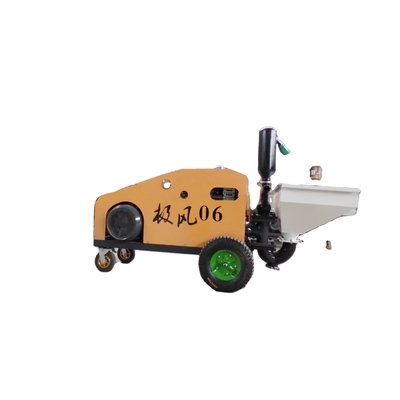

Product model | 311 type（380v） | 511 type (380v) | 711 type (380v) | Jifeng06 (380v) |
Operating Weight | 150kg | 300kg | 350kg | 500kg |
Motor power | 4kw | 7.5kw | 9kw | 9/11kw |
Air pump power | 2.2kw | 2.3kw | 1.5*2kw | 1.5*2kw |
Overall size | 1.52*0.68*0.95m | 1.7*0.68*1.1m | 1.93*0.68*0.8m | 2.1*0.7*1.2m |
Vertical height | 12m | 18m | 25m | 50m |
Horizontal distance | 20m | 30m | 40m | 100m |
Through particles | 4mm | 6mm | 6mm | 6mm |
Inner wall of tube | 32mm | 32mm | 38mm | 38mm |
Standard configuration | 10m conveying pipe, one spray gun and four nozzles | 10m conveying pipe, one spray gun and four nozzles | 20 m conveying pipe, one spray gun, four nozzles, vibrating screen * 1 set | 40m conveying pipe, one spray gun, four nozzles, vibrating screen * 1 set |
