Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements

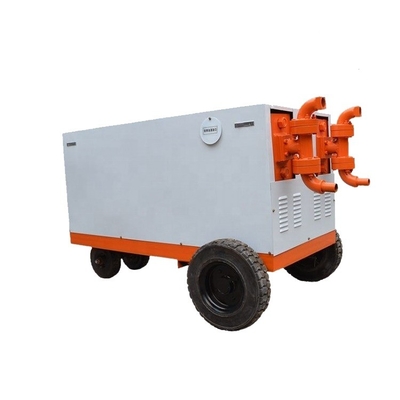

Large Image :  Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,500.00/sets 1-1 sets
Contact Now

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements

Description
Applicable Industries: Construction Works , Energy & Mining Showroom Location: None
Condition: New Power Type: Electric
Weight: 450 Kg, 450 Kg Dimension(L*W*H): 1450*780*1100mm
Warranty: 1 Year UNIQUE SELLING POINT: Fully Hydraulic System
Max. Vertical Conveying Distance: Other Max. Horizontal Conveying Distance: Other
Productivity: 7M³/H Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2023
Warranty Of Core Components: 1 Year Core Components: Motor
Product Name: Double Cylinder Hydraulic Grouting Pump Keyword: Double Cylinder And Double Fluid
Application: Construction Engineering Color: Customers' Requirement
MOQ: 1 Voltage: 380V/220V
Pressure: 0-10Mpa Engine Type: Electric Motor
Product: 7M³/H

Products Description
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 0
Double cylinder double liquid grouting pump, also known as double liquid grouting pump, is a double cylinder double acting piston pump that can transport various media such as cement slurry, yellow mud, water glass, oil, water, and so on. It can transport two media simultaneously or one media separately, with stable performance, compact structure, and convenient operation and maintenance.
Product Paramenters
YZB-5
YZB-7
Discharge volume
5m³/h
7m³/h
working pressure
0-10Mpa
0-10Mpa
Motor power
7.5KW
11KW
Noise power level
110dB(A)
110dB(A)
Diameter of slurry outlet
32mm
32mm
Suction port diameter
64mm
64mm
Overall dimensions
1450*780*1100mm
1450*780*1100mm
total weight
380kg
420kg
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 1
Details Images

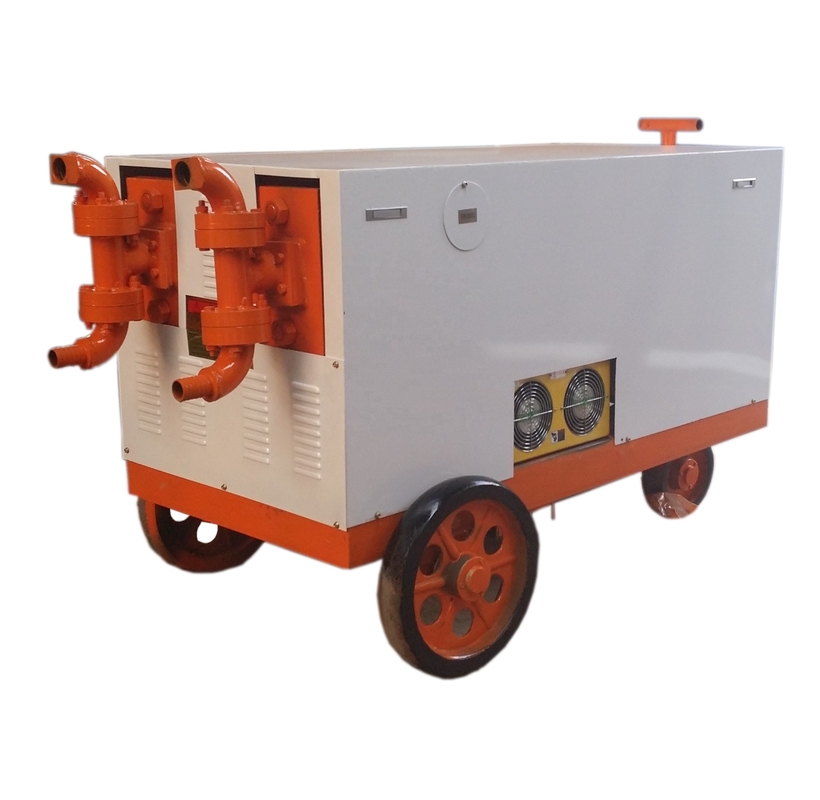

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 2

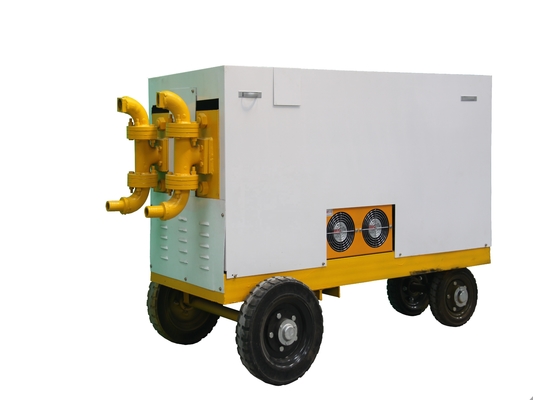

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 3
1、Double cylinder：Simultaneous suction and discharge of two liquids can beachieved 2、Radiator:Install a separate heat sink,Make working hours longer 3、Brand Elements:high-quality and durable, with guaranteed quality 4、Hydraulic drive:High pumping pressure long distance 5、Moving wheel:Compact structure, suitable for construction in narrow spaces
Pruduct Show
Good quality Construction mining Double cylinder double action liquid injection pump

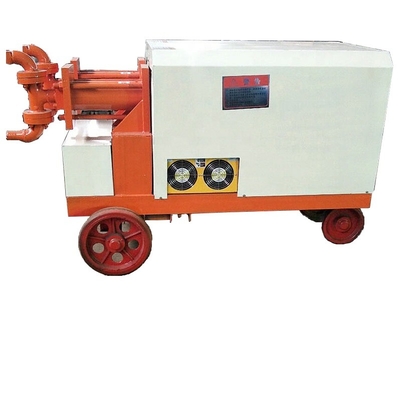

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 4

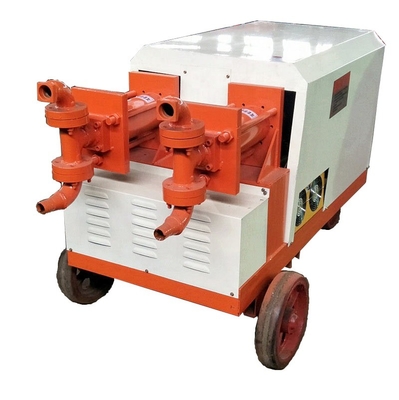

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 5

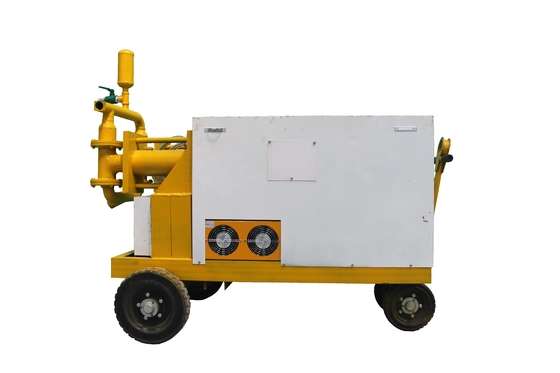

Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 6
Why Choose Us
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 7
Product packaging
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 8
The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.
Company Profile
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 9
Be Focus Electromechanical Equipment Co., Ltd., which was founded in 1998, is a high-tech enterprise specializing in thedesign, R&D and innovation of concrete machinery for the engineering construction of mines, tunnel bridges, subway culverts,hydropower projects, underground projects and coal mine tunnels, as well as production and sales services.
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 10
    Corporate Culture
All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,
brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term
partners.
Excellent partner
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 11
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry Certificate
Diesel Cement Grout Pump And Mixer for Pressure Grouting in Construction Requirements 12
FAQ
1.Q: Are you the original manufacturer?
A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?
A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time
A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
