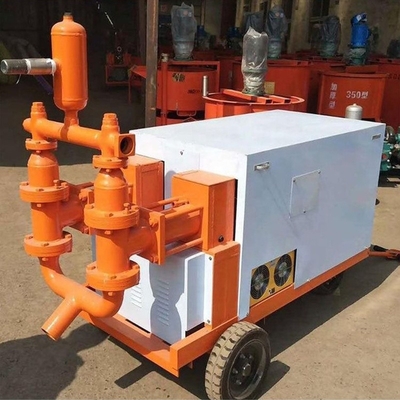

Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting

Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting

Large Image :  Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting

Product Details:
Place of Origin: Henan, China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,500.00/sets 1-1 sets
Packaging Details: Non fumigation wooden box packaging
Contact Now

Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting

Description
Applicable Industries: Construction Works , Energy & Mining Showroom Location: None
Condition: New Power Type: Electric
Weight: 450 Kg, 450 Kg Dimension(L*W*H): 1450*780*1100mm
Warranty: 1 Year UNIQUE SELLING POINT: Long Lifetime
Max. Vertical Conveying Distance: Other Max. Horizontal Conveying Distance: Other
Productivity: 7M³/H Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2023
Warranty Of Core Components: 1 Year Core Components: Motor
Product Name: Double Cylinder Hydraulic Grouting Pump Keyword: Double Cylinder And Double Fluid
Application: Construction Engineering Color: Customers' Requirement
MOQ: 1 Voltage: 380V/220V
Pressure: 0-10Mpa Engine Type: Electric Motor
Product: 7M³/H Port: QINGDAO

Products Description
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 0
Double cylinder double liquid grouting pump, also known as double liquid grouting pump, is a double cylinder double acting piston pump that can transport various media such as cement slurry, yellow mud, water glass, oil, water, and so on. It can transport two media simultaneously or one media separately, with stable performance, compact structure, and convenient operation and maintenance.
Product Paramenters
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 1
YZB-5
YZB-7
Discharge volume
5m³/h
7m³/h
working pressure
0-10Mpa
0-10Mpa
Motor power
7.5KW
11KW
Noise power level
110dB(A)
110dB(A)
Diameter of slurry outlet
32mm
32mm
Suction port diameter
64mm
64mm
Overall dimensions
1450*780*1100mm
1450*780*1100mm
total weight
380kg
420kg
Usage scenario
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 2

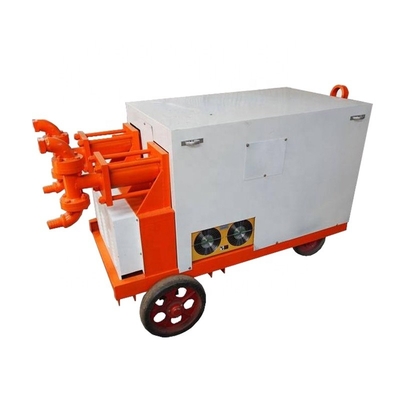

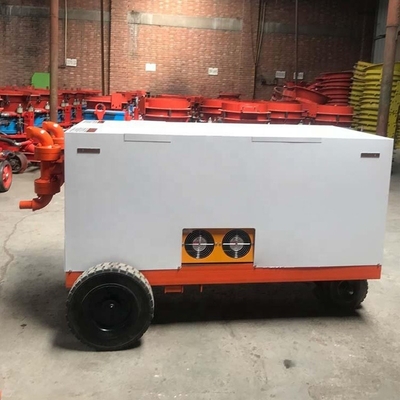

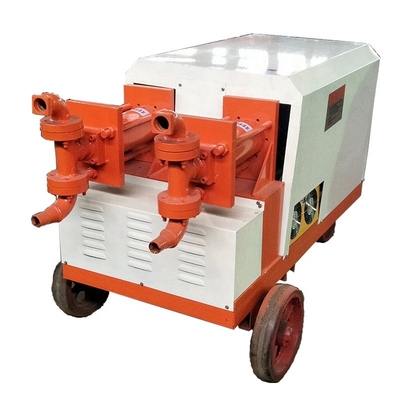

Details Images
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 3
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 4
1、Double cylinder：Able to absorb and discharge two liquids simultaneously 2、Ressure gauge：Can accurately reflect the working state of the pump 3、Cooling fan：Effectively eliminate heat generated by equipment operation 4、Moving wheels：Suitable for construction in narrow spaces 5、Hydraulic drive：High pumping pressure and long delivery distance
Why Choose Us
Double cylinder double liquid grouting pump subway tunnel high pressure cement water glass grouting machine
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 5
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 6

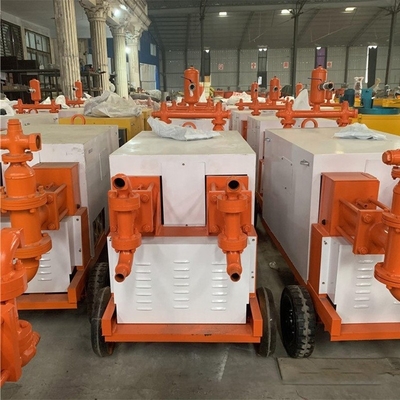

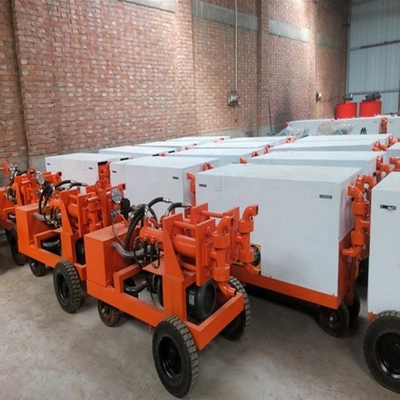

Product display
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 7
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 8
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 9
Product packaging
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 10
Company Profile
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 11
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 12
    Corporate Culture
All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,
brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term
partners.
Excellent partner
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 13
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry Certificate
Hydraulic Double Piston Mortar Plastering Pump for Cement Mortar Spraying/Pumping/Grouting 14
FAQ
1.Q: Are you the original manufacturer?
A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?
A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time
A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
