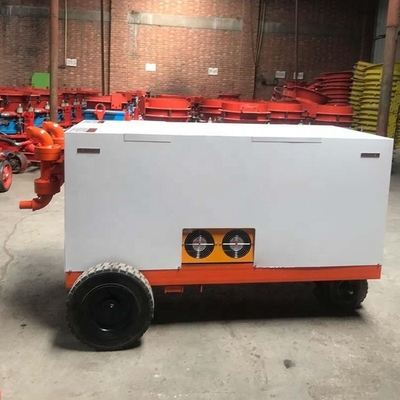

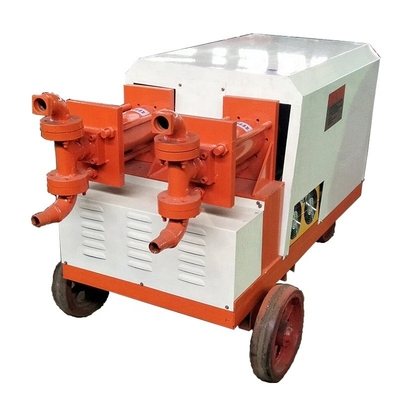

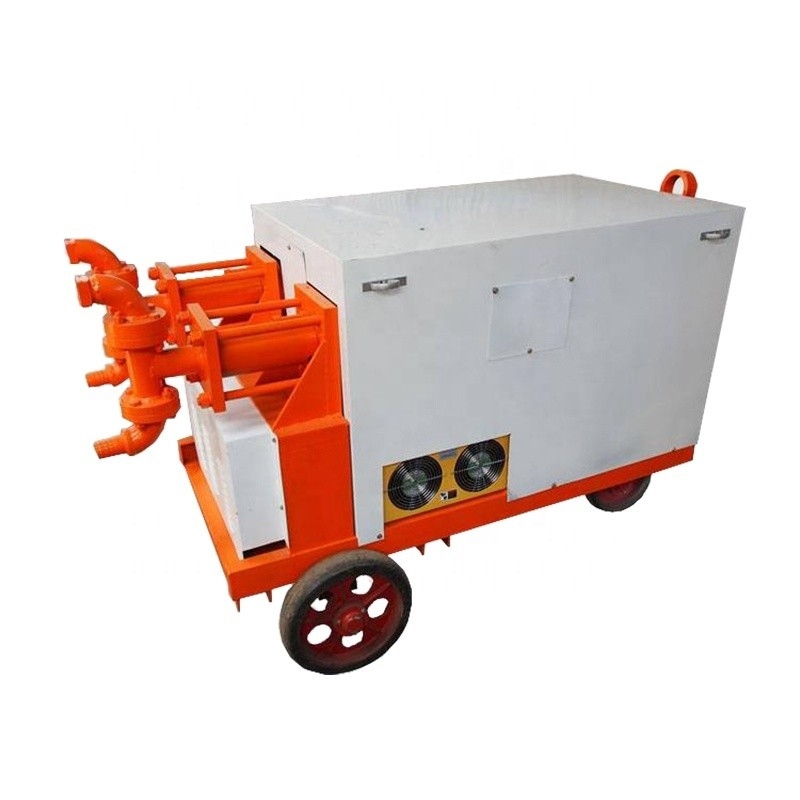

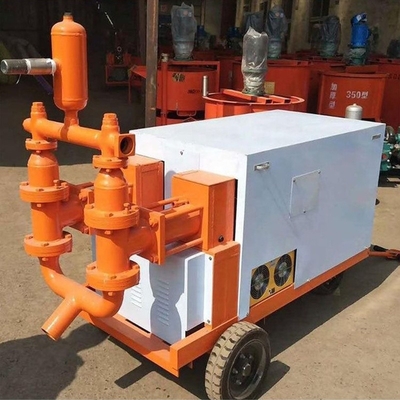

Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction

All Products

Road Construction Machinery

(1559)

Rebar Processing Machinery

(1471)

Agricultural Farm Machinery

(191)

Geomembrane Welding Machine

(224)

Electric Forklift

(86)

Wheel Loader

(90)

Construction Mining Machinery

(342)

Brick Making Machine

(216)

Concrete Machinery

(288)

Ungrouped

(1006)
I'm Online Chat Now

Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction

Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction

Large Image :  Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction

Product Details:
Place of Origin: Henan, China
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $2,500.00/sets 1-1 sets
Packaging Details: Non fumigation wooden box packaging
Contact Now

Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction

Description
Applicable Industries: Construction Works , Energy & Mining Showroom Location: None
Condition: New Power Type: Electric
Weight: 450 Kg, 450 Kg Dimension(L*W*H): 1450*780*1100mm
Warranty: 1 Year UNIQUE SELLING POINT: Long Lifetime
Max. Vertical Conveying Distance: Other Max. Horizontal Conveying Distance: Other
Productivity: 7M³/H Machinery Test Report: Not Available
Video Outgoing-inspection: Provided Marketing Type: Hot Product 2023
Warranty Of Core Components: 1 Year Core Components: Motor
Product Name: Double Cylinder Hydraulic Grouting Pump Keyword: Double Cylinder And Double Fluid
Application: Construction Engineering Color: Customers' Requirement
MOQ: 1 Voltage: 380V/220V
Pressure: 0-10Mpa Engine Type: Electric Motor
Product: 7M³/H Port: QINGDAO

Products Description
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 0
Double cylinder double liquid grouting pump, also known as double liquid grouting pump, is a double cylinder double acting piston pump that can transport various media such as cement slurry, yellow mud, water glass, oil, water, and so on. It can transport two media simultaneously or one media separately, with stable performance, compact structure, and convenient operation and maintenance.
Product Paramenters
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 1
YZB-5
YZB-7
Discharge volume
5m³/h
7m³/h
working pressure
0-10Mpa
0-10Mpa
Motor power
7.5KW
11KW
Noise power level
110dB(A)
110dB(A)
Diameter of slurry outlet
32mm
32mm
Suction port diameter
64mm
64mm
Overall dimensions
1450*780*1100mm
1450*780*1100mm
total weight
380kg
420kg
Usage scenario
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 2
Details Images
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 3
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 4
1、Double cylinder：Able to absorb and discharge two liquids simultaneously 2、Ressure gauge：Can accurately reflect the working state of the pump 3、Cooling fan：Effectively eliminate heat generated by equipment operation 4、Moving wheels：Suitable for construction in narrow spaces 5、Hydraulic drive：High pumping pressure and long delivery distance
Why Choose Us
Double cylinder double liquid grouting pump subway tunnel high pressure cement water glass grouting machine
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 5
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 6

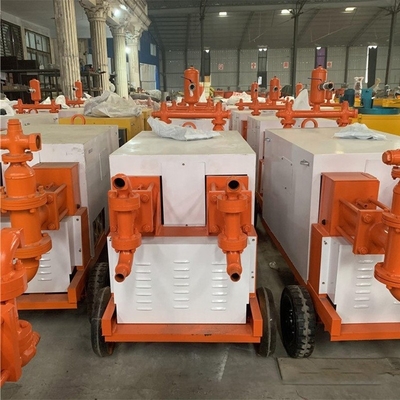

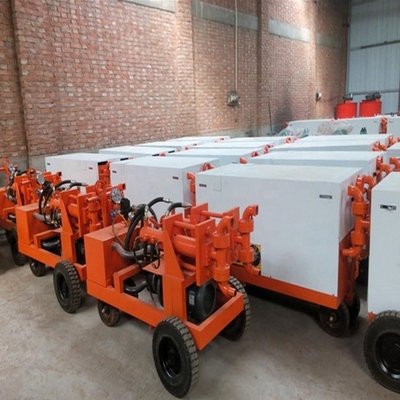

Product display
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 7
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 8
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 9
Product packaging
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 10
The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.
Company Profile
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 11
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 12
    Corporate Culture
All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,
brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term
partners.
Excellent partner
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 13
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry Certificate
Ub3c Electric Hydraulic Cement Grouting Mortar Pump Machine For Concrete Construction 14
FAQ
1.Q: Are you the original manufacturer?
A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?
A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time
A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
