Product Details:
|
Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Construction Site, Road Hardening, Tunnel Railway, Canal Casting, Expressway, Cement Pavement | Showroom Location: | None |
---|---|---|---|
Condition: | New | Power Type: | Electric |
Weight: | 260 Kg | Dimension(L*W*H): | 1.2*0.48*0.94m |
Warranty: | 1 Year | UNIQUE SELLING POINT: | Long Lifetime |
Max. Vertical Conveying Distance: | 40M | Max. Horizontal Conveying Distance: | 150M |
Productivity: | 3M³/H | Machinery Test Report: | Not Available |
Video Outgoing-inspection: | Provided | Marketing Type: | Ordinary Product |
Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Other |
Port: | Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot |

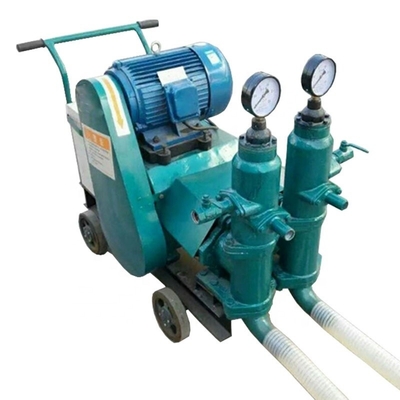

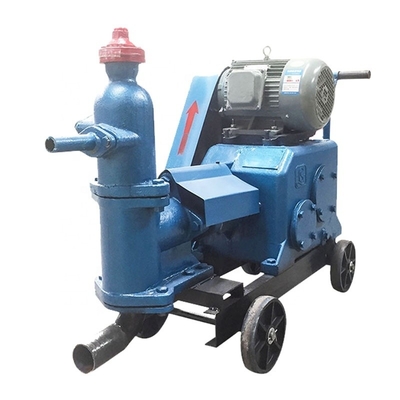

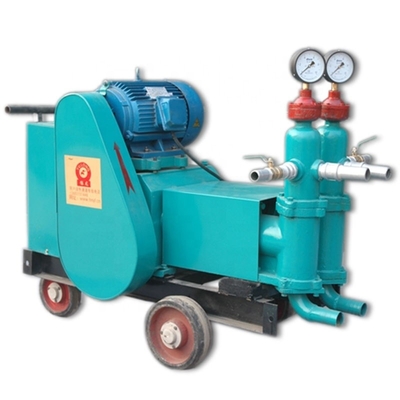

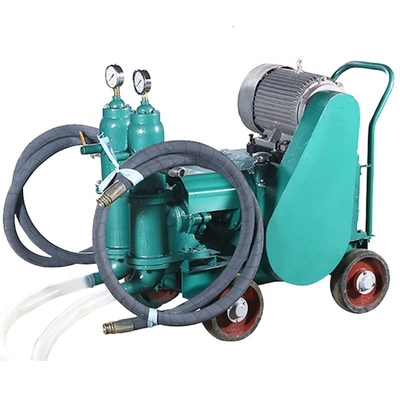

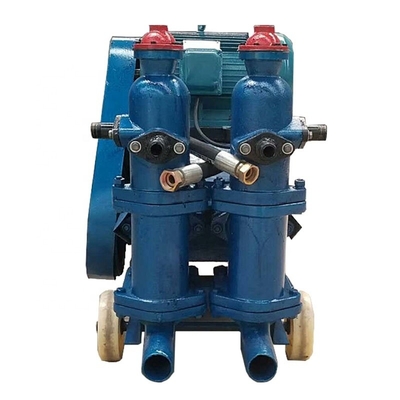

Piston type single cylinder pump | Piston type double cylinder pump | |
Rated working pressure | 2 Mpa | 4Mpa |
Vertical conveying distance | 30m | 50m |
Horizontal conveying distance | 80m | 200m |
Inner diameter of discharge pipe | 32/38mm | 32mm |
Inner diameter of slurry inlet pipe | 51mm | 51mm |
Motor power | 4kw | 5.5kw |
Conveying capacity | 3m³/h | 6m³/h |
Total weight | 260kg | 400kg |
Overall dimensions | 1033×474×940mm | 1250×550×900mm |
