Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting

Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting

Large Image :  Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $406.92/sets >=10 sets
Contact Now

Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting

Description
Features: For Circular Manhole Cutting Application: Manhole Covers Cutting
Condition: New Warranty: 1 Year
Dimension(L*W*H): 1033*474*940mm Power: 4kw
Voltage: 220 Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Construction Works
Weight (KG): 260 Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Not Available
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Motor, Pressure Vessel, Pump UNIQUE SELLING POINT: Short Turning Radius
Product Name: Mortar Pump Application Site: Engineering Construction
After-sales Service Provided: Online Support Usage: Wall Plaster Smoothing
Unit Weight: 260kg Size: 1033*474*940mm
Motor Power: 4Kw

Pruduct Show
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 0
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 1
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 2
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 3

Product Introduction

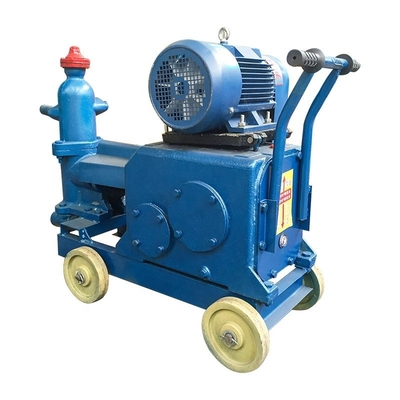

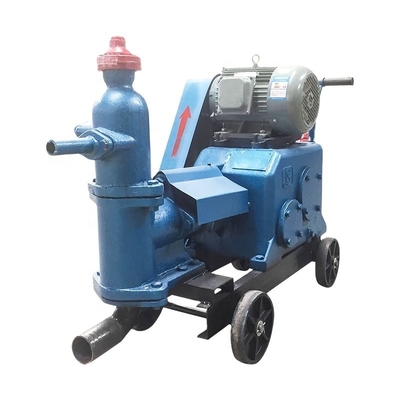

The grouting pump is a kind of grouting equipment used for grouting water blocking, filling gaps, strengthening broken rock layers and other projects in construction sites such as mines, tunnels, water conservancy, subways, buildings, bridges, etc.
Product Paramenters

Parameters of piston type single cylinder pump
Name
Piston type single cylinder pump
Motor power
4kw
Rated working pressure
2Mpa
Conveying capacity
3Mm³/h
Vertical conveying distance
30m
Conveying inner diameter of slurry inlet
51mm
Horizontal conveying distance
80m
Weight
260kg
Inner diameter of rubber hose at slurry discharge port
32/38mm
External dimensions: length × width *×height
1033×474×940mm

Parameters of piston type double cylinder pump
Name
Piston type double cylinder pump
Motor power
5.5kw
Discharge conveying capacity
6m³/h
Horizontal conveying distance
200m
Maximum rated pressure
4Mpa
Vertical conveying distance
50m
Inner diameter of rubber hose at slurry discharge port
32mm
Conveying inner diameter of slurry inlet
51mm
Weight
400kg
External dimensions: length × width *×height
1250×550×900mm

Product classification
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 4

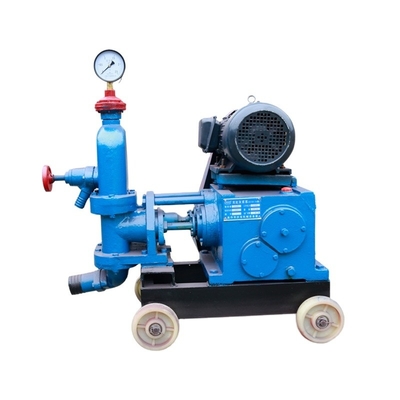

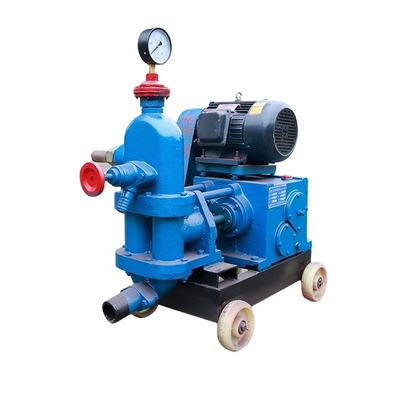

Piston type single cylinder pump
ZJB-3 single cylinder pump is a practical and efficient cement mortar pump, widely used in pressure grouting, mortar transportation, and spraying operations in highway, railway, bridge, municipal, construction, tunnel, port, water conservancy, mining, and other projects. It has small volume, light weight, small work required, and large discharge capacity.

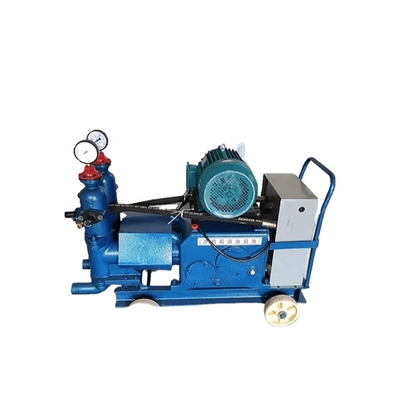

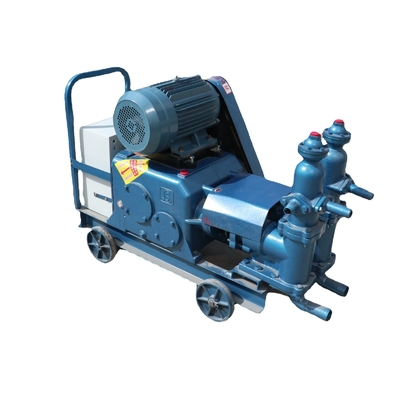

Piston type double cylinder pump
ZJB-6 double cylinder pump, compared with traditional pumps, this pump has stable pressure and small pulse, and is suitable for bridge grouting with grouting trolley. It can be used for double pipe grouting at the same time, with small volume, light weight, low power consumption, large discharge volume, and working pressure The advantages of high strength, using dual cylinder operation, more stable operation, material saving, energy saving, and convenient handling.
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 5

Difference between single cylinder pump and double cylinder pump
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 6
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 7
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 8
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 9

Difference

The difference is between single in and single out and double in and double out 1.The double cylinder pump can simultaneously inject two types of grout,
2.and can simultaneously inject mortar and accelerator,
3.which is used when there is water or rapid solidification is required
Details of the product
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 10
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 11
1.Suction valve 2.Discharge valve 3.cavity 4.plunger 5.crosshead 6.connecting rod 7.crank 8.stuffing box

Product Vulnerable Parts
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 12

Quick-wear part

1.Packing 2.Piston 3.Cage 4.Pressure gauge

Application Scenario
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 13
Title goes here.
1. In construction engineering, it is used for vertical and horizontal conveying of mortar; 2. Used for grouting in national defense engineering, civil air defense engineering, mine and tunnel construction; 3. In farmland water conservancy projects, it is used to reinforce dams. Drilling wells in sand is used to reinforce shaft walls, etc. 4. In railway construction, it is used for grouting reinforcement of bridges and culverts. 5. Prestressed component engineering is used for mortar injection expansion, etc. 6. It is used for conveying fly ash mortar in thermal power plants. 7. In the maintenance of highway pavement, it is used for void grouting at the bottom of cement concrete pavement slabs.
Why Choose Us
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 14
Company profit
Henan Be Focus Electromechanical Equipment Co., Ltd. was founded in 1938 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 15

Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
Production Capacity
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 16
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 17
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 18
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 19

The company cooperates with all major engineering projects
R&D capability
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 20
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 21
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 22

Packing
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 23
Factory inspection report
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 24
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 25
Experience the Power of Dp-tx450 Texture/Plaster Sprayer for Circular Manhole Cutting 26


FAQ


Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.
Q3. How about your delivery time? A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine?
Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed. Q6. Do you test all goods before delivery? Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine. Q7. Do you give priority to providing vulnerable parts to trading customers? Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories. Q8: How do you maintain a long-term good relationship with our business? Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers; 2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine? Ans.: All our products have CE and ISO9001 certificates.
