1033474940mm Size Electric Mortar Pump 84m3/h Portable Concrete Pump 260KG Weight

Large Image : 1033*474*940mm Size Electric Mortar Pump 84m3/h Portable Concrete Pump 260KG Weight

Product Details:

Place of Origin:	Henan, China
Brand Name:	Be Focus

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$406.92/sets >=10 sets

Contact Now

1033474940mm Size Electric Mortar Pump 84m3/h Portable Concrete Pump 260KG Weight

Description

Features:	For Circular Manhole Cutting	Application:	Manhole Covers Cutting
Condition:	New	Warranty:	1 Year
Dimension(LWH):	1033474940mm	Power:	4kw
Voltage:	220	Applicable Industries:	Hotels, Building Material Shops, Manufacturing Plant, Construction Works
Weight (KG):	260	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine, Bearing, Motor, Pressure Vessel, Pump	UNIQUE SELLING POINT:	Short Turning Radius
Product Name:	Mortar Pump	Application Site:	Engineering Construction
After-sales Service Provided:	Online Support	Usage:	Wall Plaster Smoothing
Unit Weight:	260kg	Size:	1033474940mm
Motor Power:	4Kw

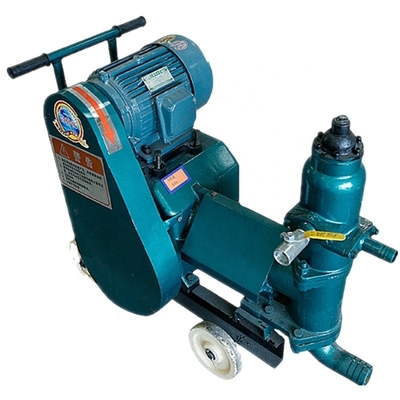

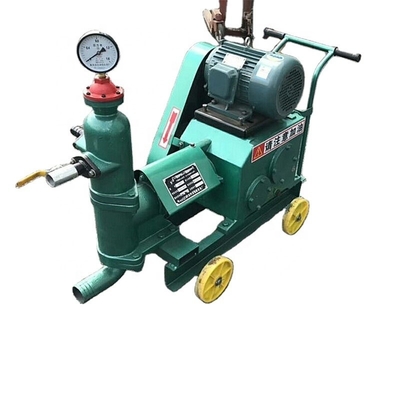

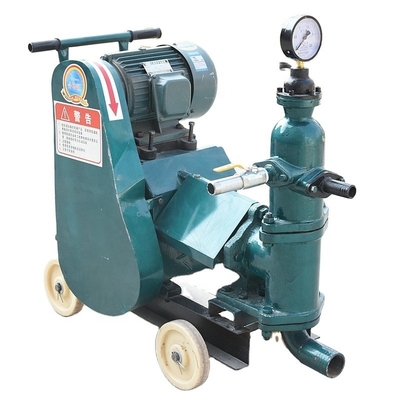

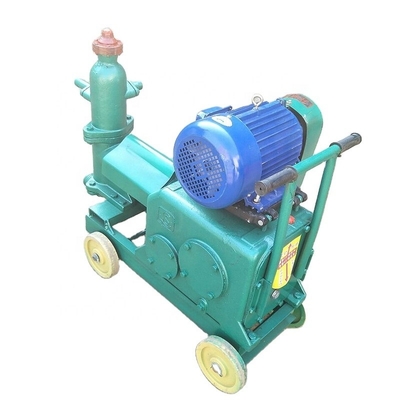

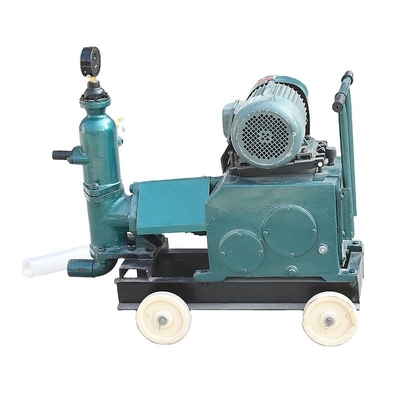

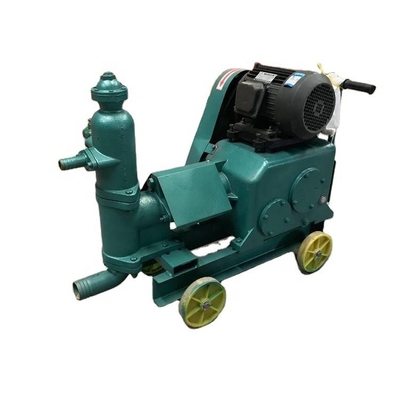

Pruduct Show

Product Introduction

The grouting pump is a kind of grouting equipment used for grouting water blocking, filling gaps, strengthening broken rock layers and other projects in construction sites such as mines, tunnels, water conservancy, subways, buildings, bridges, etc.

Product Paramenters

Parameters of piston type single cylinder pump

Name	Piston type single cylinder pump	Motor power	4kw
Rated working pressure	2Mpa	Conveying capacity	3Mm³/h
Vertical conveying distance	30m	Conveying inner diameter of slurry inlet	51mm
Horizontal conveying distance	80m	Weight	260kg
Inner diameter of rubber hose at slurry discharge port	32/38mm	External dimensions: length × width *×height	1033×474×940mm

Parameters of piston type double cylinder pump

Name	Piston type double cylinder pump	Motor power	5.5kw
Discharge conveying capacity	6m³/h	Horizontal conveying distance	200m
Maximum rated pressure	4Mpa	Vertical conveying distance	50m
Inner diameter of rubber hose at slurry discharge port	32mm	Conveying inner diameter of slurry inlet	51mm
Weight	400kg	External dimensions: length × width *×height	1250×550×900mm

Product classification

Piston type single cylinder pump

ZJB-3 single cylinder pump is a practical and efficient cement mortar pump, widely used in pressure grouting, mortar transportation, and spraying operations in highway, railway, bridge, municipal, construction, tunnel, port, water conservancy, mining, and other projects. It has small volume, light weight, small work required, and large discharge capacity.

Piston type double cylinder pump

ZJB-6 double cylinder pump, compared with traditional pumps, this pump has stable pressure and small pulse, and is suitable for bridge grouting with grouting trolley. It can be used for double pipe grouting at the same time, with small volume, light weight, low power consumption, large discharge volume, and working pressure The advantages of high strength, using dual cylinder operation, more stable operation, material saving, energy saving, and convenient handling.

Difference between single cylinder pump and double cylinder pump

Difference

The difference is between single in and single out and double in and double out 1.The double cylinder pump can simultaneously inject two types of grout,

2.and can simultaneously inject mortar and accelerator,

3.which is used when there is water or rapid solidification is required

Details of the product

1.Suction valve 2.Discharge valve 3.cavity 4.plunger 5.crosshead 6.connecting rod 7.crank 8.stuffing box

Product Vulnerable Parts

Quick-wear part

1.Packing 2.Piston 3.Cage 4.Pressure gauge

Application Scenario

Title goes here.

1. In construction engineering, it is used for vertical and horizontal conveying of mortar; 2. Used for grouting in national defense engineering, civil air defense engineering, mine and tunnel construction; 3. In farmland water conservancy projects, it is used to reinforce dams. Drilling wells in sand is used to reinforce shaft walls, etc. 4. In railway construction, it is used for grouting reinforcement of bridges and culverts. 5. Prestressed component engineering is used for mortar injection expansion, etc. 6. It is used for conveying fly ash mortar in thermal power plants. 7. In the maintenance of highway pavement, it is used for void grouting at the bottom of cement concrete pavement slabs.
