1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design

Large Image :  1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design

Product Details:
Place of Origin: Henan, China
Brand Name: Be Focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,703.47/sets >=10 sets
Contact Now

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design

Description
Features: Laser Leveling Ruler Application: Road, Bridge, Dam, Mine Construction, Public Buildings
Condition: Used Production Capacity: 0-200 M/min
Warranty: 1 Year Dimension(L*W*H): 1100*995*650mm
Power: 7.5, 7.5kw Voltage: None
Applicable Industries: Building Material Shops, Construction Works  Weight (KG): 500
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Engine, Motor
UNIQUE SELLING POINT: High Operating Efficiency Product Name: Mud Pump
Keywords 1: Drilling Mud Centrifugal Pump Keywords 2: Small Mud Pump
Type: Oil Drilling Mud Pump Unit Weight: 500kg
Size: 1100*995*650mm After-sales Service: Video Technical Support Onlin

Pruduct Show
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 0

Mud pump

Mud pump is a widely used machine nowadays, which is used to transport mud into the borehole during drilling
Details of the product
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 1

Its structure is simple, its operation is also very simple, its volume is small, and its transportation, installation, and use are very convenient.

Model division
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 2

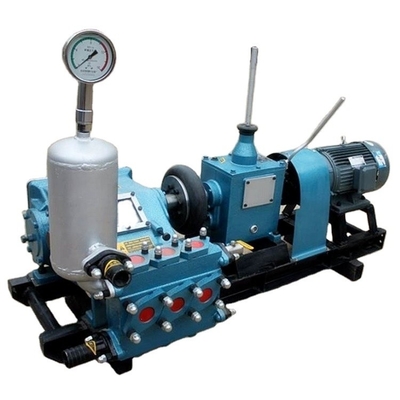

BW150 mud pump
It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It
is used in geological core drilling engineering to deliver flushing fluid mud to the borehole. The pump consumes less energy, is
flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.

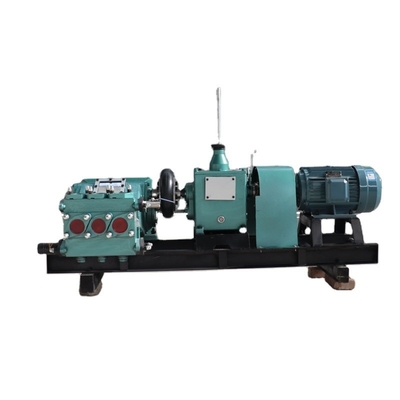

BW150 variable frequency mud pump
It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It is used in geological core drilling engineering to deliver flushing fluid mud to the borehole.
The pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to
relocate.
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 3
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 4

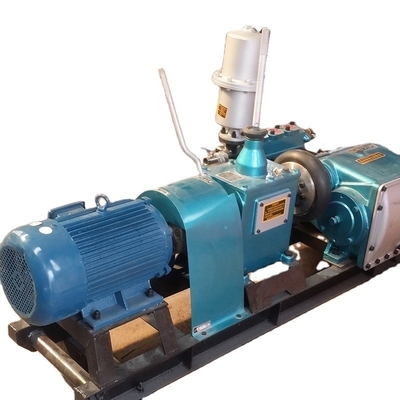

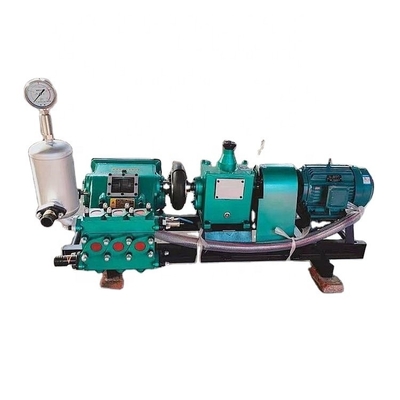

The BW-250 type (grouting pump) mud pump
The BW-250 type (grouting pump) mud pump is a horizontal three cylinder reciprocating single acting piston pump with two cylinder diameters and four speeds. The displacement and hole depth can be adjusted according to the purpose. The deepest hole can be used with a 1500 meter drilling rig or used for cement slurry pouring. This pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.
Product Paramenters
Product Name
BW-150 Mud Pump
Drive power
7.5Kw
Maximum flow
150L/min
Maximum pressure
7Mpa
Suction pipe diameter
50mm
Drain pipe diameter
32mm
Weight
500Kg
Product Name
150 frequency conversion mud pump
Drive power
7.5Kw
Maximum flow
150L/min
Maximum pressure
10Mpa
Suction pipe diameter
Outer diameter 50mm
 Inner diameter 35mm
Drain pipe diameter
Outer diameter 30 mm
Inner diameter 23mm
Weight
330Kg
Product Name
BW-250 Mud Pump
Drive power
15Kw
Maximum flow
250L/min
Maximum pressure
8Mpa
Suction pipe diameter
75mm
Drain pipe diameter
50mm
Drilling hole depth
Diamond drilling＜1500
Alloy drilling＜1000
Weight
760kg
Overall dimensions
1100*995*650（mm）

Equipment parts
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 5


Ball valve and ball valve seat

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 6


Plunger

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 7


Sealing pressure ring and sealing ring

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 8

Cylinder head

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 9

Pressure transmitter
Flow meter

1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 10


Pig iron oil pipe sleeve
The softer the shaft, the less it will grind

Application Scenario
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 11
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 12

It is mainly used for tunnel excavation and maintenance, road, bridge, dam, mine construction, and foundation treatment projects for high-rise buildings, as well as various grouting construction projects. It is also used for curtain grouting (greater than 5Mpa) of dam foundations, consolidation grouting, and high slopes, long-distance anchor grouting, and large displacement long-distance transportation of grout, as well as high-pressure grouting that requires pressure.
Why Choose Us
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 13
Company profit
Henan Be Focus Electromechanical Equipment Co., Ltd. was founded in 1938 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
1100*995*650mm Mud Pump for Sludge Removal and High Pressure Grouting Horizontal Design 14

Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
