Product Details:
|
| Applicable Industries: | Building Material Shops, Retail, Construction Works | Showroom Location: | None |
|---|---|---|---|
| Condition: | New | Power Type: | Diesel |
| Weight: | 400 Kg | Dimension(L*W*H): | 1800*594*1250mm |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | High Load Moment |
| Max. Vertical Conveying Distance: | 10-180M | Max. Horizontal Conveying Distance: | 20-250M |
| Productivity: | 8M³/H | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Not Available | Marketing Type: | New Product 2023 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Gearbox, Engine |

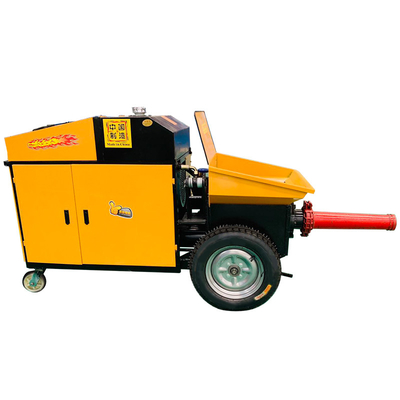

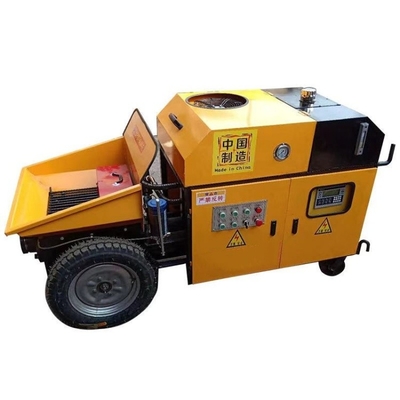

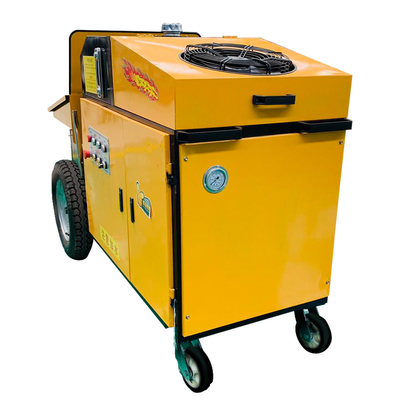

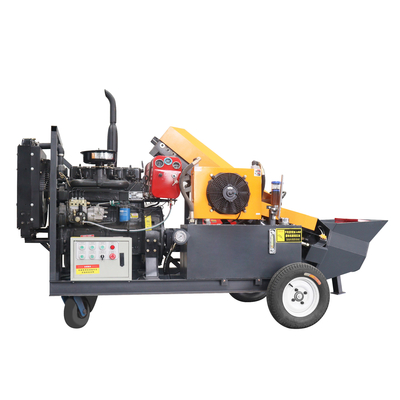

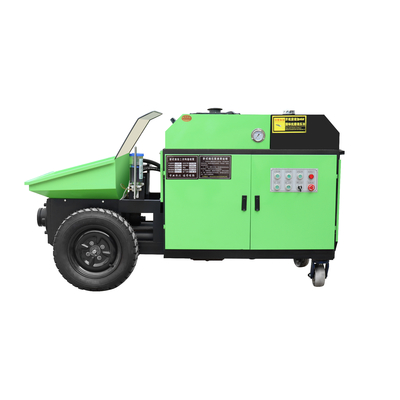

| Product Name: | Mini Diesel/Electric Concrete Pump | Keword: | Small Concrete Pump |
| Brand: | Tatooine | Power: | 45KW |
| Model: | XK15/XK30/XK45 | Max Aggregate Size: | 20 Mm |
| SIZE: | 1800*594*1250mm | Capacity: | 8-14 M*3/h |
| Application: | Roads, Railways, Tall Buildings, Bridges, Tunnels |

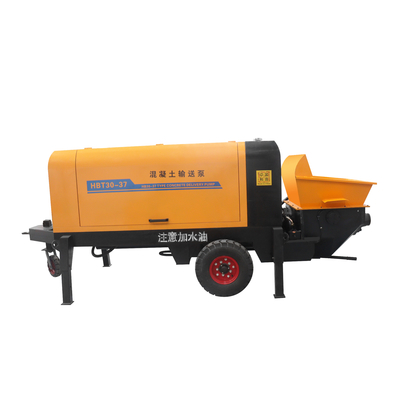

HB30-20 pump | HB37-30 pump | HB45-40 pump | HB55-50 pump | |
Outlet pressure | 10 Mpa | 10 Mpa | 12 Mpa | 11 Mpa |
Max aggregate size | 15 mm | ≤15 mm | ≤15-20 mm | ≤30 mm |
Delivery pipe via | 75/80 mm | 75/80 mm | 80/100/125 mm | 100/125 mm |
Motor power | 30 KW | 37 KW | 45 KW | 45 -55 KW |
Horizontal conveying distance | 150-260 m | 200-300 m | 400 m | 150-260 m |
Vertical conveying distance | 50-70 m | 100-120 m | 100-150 m | 80-100 m |
Feeding height | 950 mm | 1000 mm | 1100 mm | 1200 mm |
Total weight | 1450 KG | 1950 KG | 2500 KG | 3200 KG |
Overall dimension | 2800*1300*1500 mm | 4000*1500*1550 mm | 4100*1500*1600 mm | 4500*1800*1700 mm |
