Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering

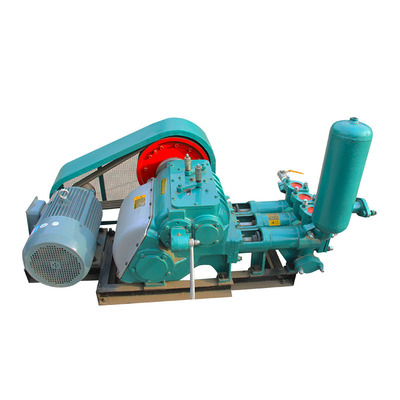

Large Image :  Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering

Product Details:
Place of Origin: Henan, China
Brand Name: Be-focus
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,710.00/sets 1-4 sets
Packaging Details: Standard export wooden box packaging
Supply Ability: 1000 Set/Sets per Month
Contact Now

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering

Description
Applicable Industries: Building Material Shops, Construction Works , Energy & Mining Showroom Location: None
Condition: New Power Type: Electric
Weight: 560 Kg Warranty: 1 Year
UNIQUE SELLING POINT: High Load Moment Max. Vertical Conveying Distance: 60M
Max. Horizontal Conveying Distance: 120M Productivity: 22M³/H
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Bearing, Pump Port: Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot

Pruduct Show
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 0

Mud pump

Mud pump is a widely used machine nowadays, which is used to transport mud into the borehole during drilling
Details of the product
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 1

Its structure is simple, its operation is also very simple, its volume is small, and its transportation, installation, and use are very convenient.

Model division
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 2

BW150 mud pump
It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It
is used in geological core drilling engineering to deliver flushing fluid mud to the borehole. The pump consumes less energy, is
flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.

BW150 variable frequency mud pump
It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It is used in geological core drilling engineering to deliver flushing fluid mud to the borehole.
The pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to
relocate.
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 3
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 4

The BW-250 type (grouting pump) mud pump
The BW-250 type (grouting pump) mud pump is a horizontal three cylinder reciprocating single acting piston pump with two cylinder diameters and four speeds. The displacement and hole depth can be adjusted according to the purpose. The deepest hole can be used with a 1500 meter drilling rig or used for cement slurry pouring. This pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.
Product Paramenters
Product Name
BW-150 Mud Pump
Drive power
7.5Kw
Maximum flow
150L/min
Maximum pressure
7Mpa
Suction pipe diameter
50mm
Drain pipe diameter
32mm
Weight
500Kg
Product Name
150 frequency conversion mud pump
Drive power
7.5Kw
Maximum flow
150L/min
Maximum pressure
10Mpa
Suction pipe diameter
Outer diameter 50mm
 Inner diameter 35mm
Drain pipe diameter
Outer diameter 30 mm
Inner diameter 23mm
Weight
330Kg
Product Name
BW-250 Mud Pump
Drive power
15Kw
Maximum flow
250L/min
Maximum pressure
8Mpa
Suction pipe diameter
75mm
Drain pipe diameter
50mm
Drilling hole depth
Diamond drilling＜1500
Alloy drilling＜1000
Weight
760kg
Overall dimensions
1100*995*650（mm）

Equipment parts
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 5


Ball valve and ball valve seat

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 6


Plunger

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 7


Sealing pressure ring and sealing ring

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 8

Cylinder head

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 9

Pressure transmitter
Flow meter

Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 10


Pig iron oil pipe sleeve
The softer the shaft, the less it will grind

Application Scenario
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 11
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 12

It is mainly used for tunnel excavation and maintenance, road, bridge, dam, mine construction, and foundation treatment projects for high-rise buildings, as well as various grouting construction projects. It is also used for curtain grouting (greater than 5Mpa) of dam foundations, consolidation grouting, and high slopes, long-distance anchor grouting, and large displacement long-distance transportation of grout, as well as high-pressure grouting that requires pressure.
Why Choose Us
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 13
Company profit
Xinxiang Zhongtun Electromechanical Equipment Co., Ltd. was founded in 1938 (formerly Yulong, Xinxiang Bolting and shotcreting support plant), which is specialized in building mines, tunnel bridges, subway culverts Design and research of concrete machinery for hydropower engineering, underground engineering and coal high-methane mine roadway It is a high-tech enterprise integrating innovation, production, sales and service.
Portable Three Phase Mud Slurry Transfer Sewage Water Pump for Industrial Dewatering 14

Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.
